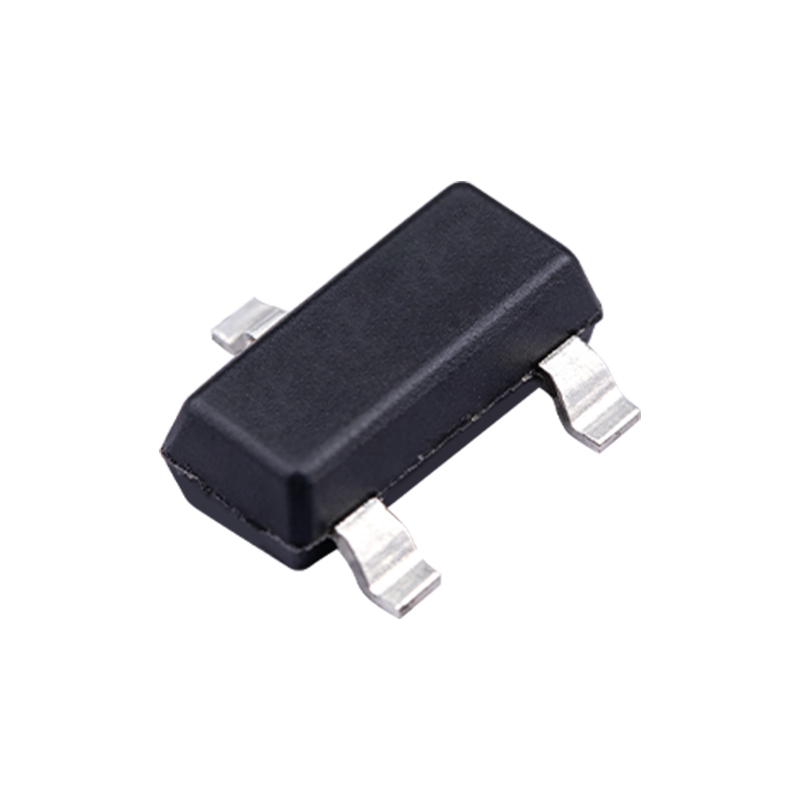

2N7002K
Small-signal N-channel MOSFET, SOT-23, 60V, built-in ESD protection.
- Brand： NCE
- Size/Package： SOT-23
- Parameter： 60V
- RDS(ON)@4.5V TYP： 1.95Ω
- RDS(ON)@10V TYP： 1.8Ω
- VGS(th)： 1.3V
- ID： 0.3A
- Operating Temp： -55-150℃
- Applications： LED backlighting, indicator driving, robot vacuums, routers, wireless APs
- 產品參數
- Brand： NCE
- Size/Package： SOT-23
- Parameter： 60V
- RDS(ON)@4.5V TYP： 1.95Ω
- RDS(ON)@10V TYP： 1.8Ω
- VGS(th)： 1.3V
- ID： 0.3A
- Operating Temp： -55-150℃
- Applications： LED backlighting, indicator driving, robot vacuums, routers, wireless APs
2N7002K | 12-300V NMOS
Product Introduction
The 2N7002K is an N-channel enhancement-mode small-signal MOSFET in a SOT-23 package, rated 60V with 0.3A continuous current. It is designed for small-signal and light-load switching and is directly compatible with TTL and CMOS logic-level drive, with a pinout fully compatible with the industry-standard 2N7002. It is a widely used surface-mount small switching device in consumer electronics and industrial control boards.
Core Advantages
- High power and current handling capability; surface-mount package; built-in gate-source ESD protection.
Key Features
Alternative Products and Reasons
- MCC: 2N7002K;
- ON: 2N7002L;
- DIODES: 2N7002K. Reason: matching parameters, compatible package, no redesign required, enabling localization and cost reduction.
Applications
battery-powered portable devices, small appliances, digital boards;
industrial control boards, sensor signal boards, low-power signal switches;
routers, ONTs, small-signal control loops inside modules;
measuring instruments, signal switching, channel selection.
Related Products
FAQ
Q: What applications is this product suitable for?
A: The 2N7002K is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of 2N7002K for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
