Brand： NCE
Size/Package： TO-252-2L
Parameter： -100V
RDS(ON)@4.5V TYP： Max:65mΩ
RDS(ON)@10V TYP： Max:48mΩ
VGS(th)： -1.9V
ID： -30A
Operating Temp： -55-175℃
Applications： Portable energy storage power supplies, electric two-wheelers, high-power power tools, commercial cleaning robots.

附件下載

產品參數

Brand： NCE
Size/Package： TO-252-2L
Parameter： -100V
RDS(ON)@4.5V TYP： Max:65mΩ
RDS(ON)@10V TYP： Max:48mΩ
VGS(th)： -1.9V
ID： -30A
Operating Temp： -55-175℃
Applications： Portable energy storage power supplies, electric two-wheelers, high-power power tools, commercial cleaning robots.

Product Detail

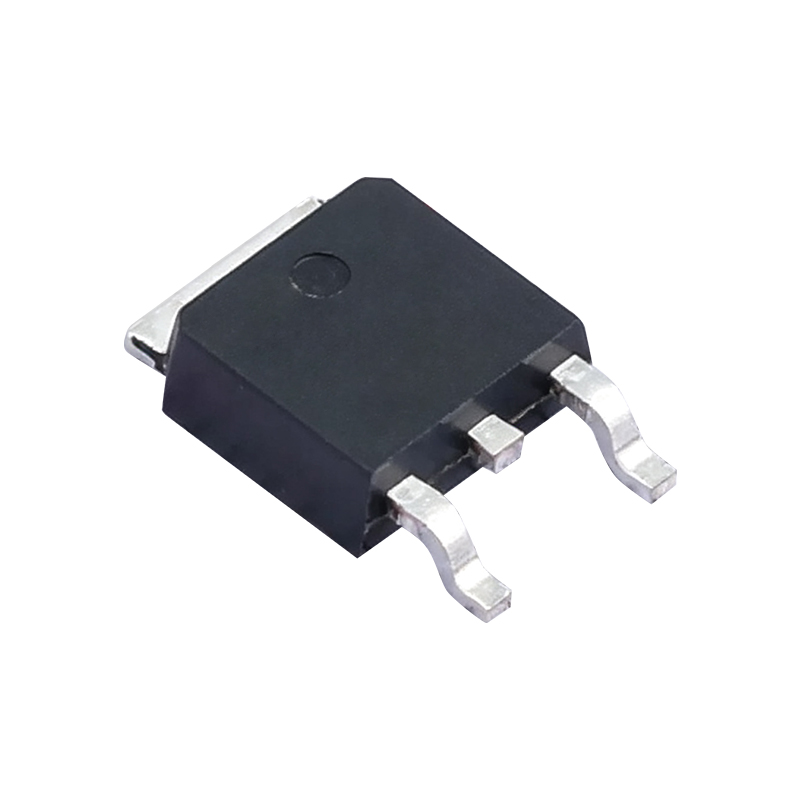

NCE01P30K | NCE -100V -30A P-Channel MOSFET TO-252-2L | YQM

NCE01P30K | 12-150V PMOS

-100V Voltage Rating

Max:48mΩ RDS(on) Typical

-30A Continuous Current

TO-252-2L Package

-55-175℃ Temp. Range

Product Introduction

The NCE01P30K uses advanced trench technology and design to deliver excellent RDS(ON) performance while maintaining low gate charge. This -100V P-channel device is suitable for a wide range of applications and is ESD certified.

Core Advantages

Low gate charge, excellent on-resistance, ESD protection, 100% UIS TESTED, 100% ΔVds TESTED.

Key Features

Low on-resistanceadvanced trench technology with an ultra-high cell density design gives a maximum Rds(on) of 48mΩ@Vgs=-10V and 65mΩ@Vgs=-4.5V; on-resistance stays very low even under low-voltage gate drive, suitable for 3.3V/5V logic-driven high-side switches in battery systems;

Low gate chargeQg=136nC, balancing on-resistance against gate charge and combining low conduction loss with good switching performance;

Excellent reliability and robustnessbuilt-in ESD protection reduces the risk of electrostatic damage and improves immunity during assembly; 100% UIS avalanche testing and 100% ΔVds testing give strong avalanche ruggedness against voltage spike stress from inductive loads (motors, inductors) and strong surge immunity, with a large safe operating area (SOA) margin for motor drive applications;

PackageTO-252-2L (DPAK) standard surface-mount package, easy PCB layout and good heat dissipation; current capability can be further increased by enlarging the copper area on the board, and the soldering process is mature for mass production;

Alternative Products and Reasons

Vishay: SUD50P10-43L-GE3;
MCC: MCU28P10Y.
Reason: parameters matched, package compatible, no PCB redesign required, enabling cost reduction through domestic sourcing.

Applications

🌐

Energy storage

portable energy storage power supplies, lithium battery protection boards, high-power battery packs;

💻

Motors

robot vacuum, vacuum cleaners, handheld power tools, high-power DC fans;

📶

Industrial and communication

industrial control boards, security cameras, switch / router on-board power supplies;

🔬

Power accessories

high-power load switch modules, 24-48V reverse-polarity protection modules, DC-DC power boards;

FAQ

Q: What applications is this product suitable for?

A: The NCE01P30K is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.

Q: Are samples available?

A: Yes, YQM ELECTRONICS provides free samples of NCE01P30K for evaluation. Contact our sales team for quick delivery.

Q: What is the minimum order quantity?

A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.

Get NCE01P30K Samples & Technical Support

Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
