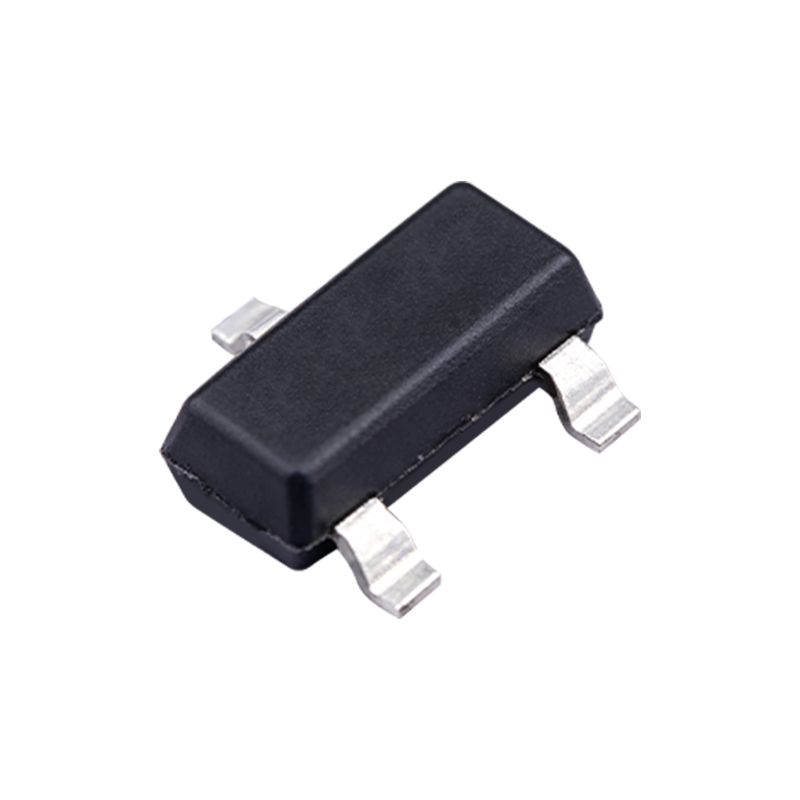

NCE2309
High density, excellent RDS(ON), low gate charge, avalanche characterized.
- Brand： NCE
- Size/Package： SOT-23
- Parameter： -60V
- RDS(ON)@4.5V TYP： 160mΩ
- RDS(ON)@10V TYP： 140mΩ
- VGS(th)： -2.0V
- ID： -1.6A
- Operating Temp： -55-150℃
- Applications： Handheld testers, small solar devices, compact beauty devices, industrial wireless AP, gateways.
- 產品參數
- Brand： NCE
- Size/Package： SOT-23
- Parameter： -60V
- RDS(ON)@4.5V TYP： 160mΩ
- RDS(ON)@10V TYP： 140mΩ
- VGS(th)： -2.0V
- ID： -1.6A
- Operating Temp： -55-150℃
- Applications： Handheld testers, small solar devices, compact beauty devices, industrial wireless AP, gateways.
NCE2309 | 12-150V PMOS
Product Introduction
The NCE2309 uses advanced trench technology and design to achieve excellent RDS(ON) performance with low gate charge. This device is well suited for use as a load switch or in PWM circuits.
Core Advantages
- High density, excellent on-resistance, low gate charge; avalanche voltage and current are fully characterized.
Key Features
Alternative Products and Reasons
- Vishay: SQ2361EES;
- ON: FDN5618P;
- DIODES: DMPH6250SQ.
- Reason: parameters matched, package compatible, no PCB redesign required, enabling cost reduction through domestic sourcing.
Applications
portable devices, lithium battery devices, power banks, Bluetooth devices, smart wearables, IoT modules;
small LED modules, light strips; power path switches, PWM dimming control, small stage lights;
human presence detection switches, door and window sensors, wireless switches;
WiFi, RS-485, LoRa sensor modules;
Related Products
FAQ
Q: What applications is this product suitable for?
A: The NCE2309 is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of NCE2309 for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
