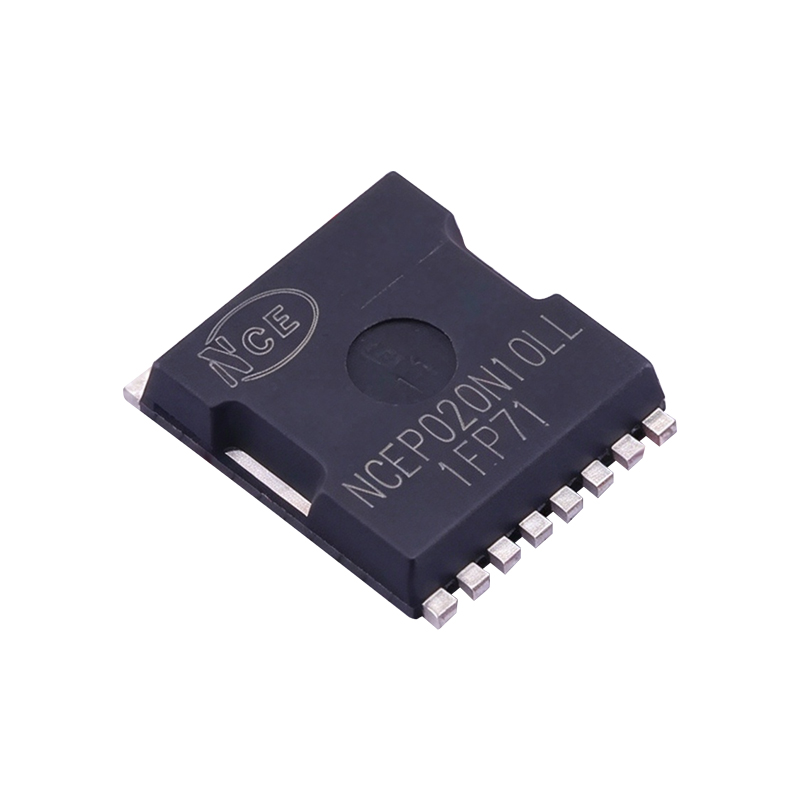

NCEP020N10LL
Ultra-low RDS(ON) and gate charge, 175℃ operating junction temperature.
- Brand： NCE
- Size/Package： TOLL-8L
- Parameter： 100V
- RDS(ON)@4.5V TYP： /
- RDS(ON)@10V TYP： 1.5mΩ
- VGS(th)： 3.0V
- ID： 330A
- Operating Temp： -55-175℃
- Applications： Robot vacuums, commercial vacuum cleaners, AGVs, energy storage PACKs, PLCs
- 產品參數
- Brand： NCE
- Size/Package： TOLL-8L
- Parameter： 100V
- RDS(ON)@4.5V TYP： /
- RDS(ON)@10V TYP： 1.5mΩ
- VGS(th)： 3.0V
- ID： 330A
- Operating Temp： -55-175℃
- Applications： Robot vacuums, commercial vacuum cleaners, AGVs, energy storage PACKs, PLCs
NCEP020N10LL | 12-300V NMOS
Product Introduction
This series of devices uses Super Trench II technology, uniquely optimized to achieve the most efficient high-frequency switching performance. Thanks to the extremely low combination of RDS(ON) and Qg, conduction loss and switching loss are minimized. This device is an ideal choice for high-frequency switching and synchronous rectification applications.
Core Advantages
- Ultra-low on-resistance and gate charge; supports 175℃ operating junction temperature.
Key Features
Alternative Products and Reasons
- ON: FDBL86063-F085;
- Infineon: IAUMN10S5N016G. Reason: matching parameters, compatible package, no redesign required, enabling localization and cost reduction.
Applications
portable energy storage, small residential energy storage systems, BMS;
industrial power supplies, server power supplies, high-power DC-DC modules;
high-power power tools, light electric vehicles, high-power BLDC motor controllers;
high-power inverters, industrial-grade UPS uninterruptible power supplies;
high-power power modules, non-automotive on-board power conversion boards.
Related Products
FAQ
Q: What applications is this product suitable for?
A: The NCEP020N10LL is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of NCEP020N10LL for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
