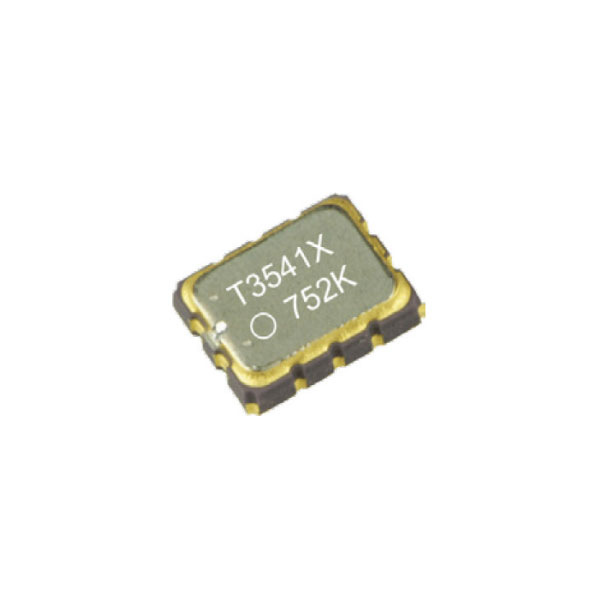

TG-3541CE
- Brand： EPSON
- Size/Package： 3.2 x 2.5 x 1.0 mm
- Parameter： 32.768KHz
- Supply Voltage： 1.5-5.5V
- Output： CMOS
- Freq Tolerance： ±8ppm
- Operating Temp： -40~+105℃
- Package： 10P 3225
- 產品參數
- Brand： EPSON
- Size/Package： 3.2 x 2.5 x 1.0 mm
- Parameter： 32.768KHz
- Supply Voltage： 1.5-5.5V
- Output： CMOS
- Freq Tolerance： ±8ppm
- Operating Temp： -40~+105℃
- Package： 10P 3225

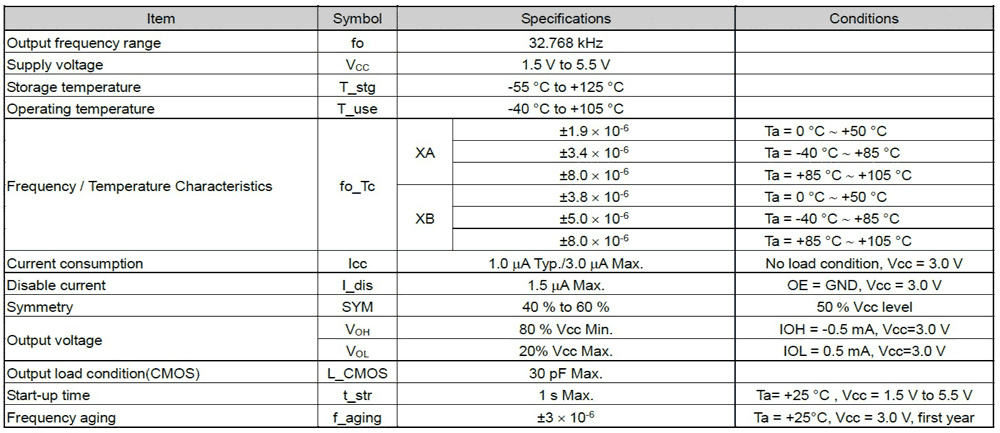

Specifications
Frequency temperature characteristics
External dimension
(Unit: mm)
Footprint
(Unit: mm)
To maintain stable operation, provide a 0.1uF by-pass capacitor
at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND).
