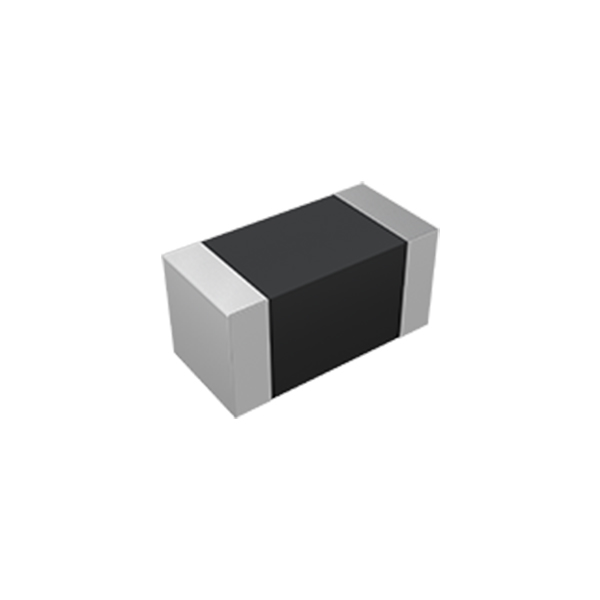

MCL2012A

Product Introduction

Sunlord MCL2012A is a multilayer chip power inductor from the MCL-A series in 0805 (2.0×1.25×0.85mm). A monolithic construction with magnetic shielding and improved magnetic material delivers higher DC-bias current and lower DCR with no cross-coupling, keeping 1.0μH~10μH operation stable from -40°C~+125°C in smartphone, mobile-PC, wearable and security DC-DC rails.

Core Advantages

• Multilayer Chip Power Inductors: 0805 (2.0×1.25×0.85 mm), 1.0–10 μH — monolithic magnetically shielded construction — no cross-coupling, stable DC-bias current.
• Low DCR, high current: DCR 0.120Ω~0.400Ω; saturation current up to 0.45A — high DC-bias performance in a 0805 body.
• Supply: YQM ELECTRONICS holds Sunlord stock with fast samples, datasheets and FAE support for volume programs.

Key Specifications

Cross Reference & Replacement

Cross-reference alternatives:

• Fenghua Advanced — A same-spec part from a globally recognized maker — compatible footprint, fully documented (not detailed in our datasheet), stable worldwide supply; a proven alternative.
• Microgate — A same-spec part from a leading passive-component maker — matched process and key parameters; widely used as an alternative in the supply chain.
• Murata — A same-spec part from a globally recognized passive-component maker — compatible footprint, matched process and key parameters, stable worldwide supply; a proven drop-in for this application class.

Applications

FAQ

Q: Why choose a multilayer (monolithic) power inductor over wire-wound?

A: Multilayer parts are smaller and cheaper for the same inductance, and the built-in magnetic shield keeps flux leakage low — ideal for dense portable designs. Wire-wound types win when very high saturation current is required.

Q: Does MCL2012A couple to nearby components?

A: No. The shielded monolithic structure contains the magnetic flux inside the body, so cross-coupling to adjacent inductors, filters or antennas is minimised.
