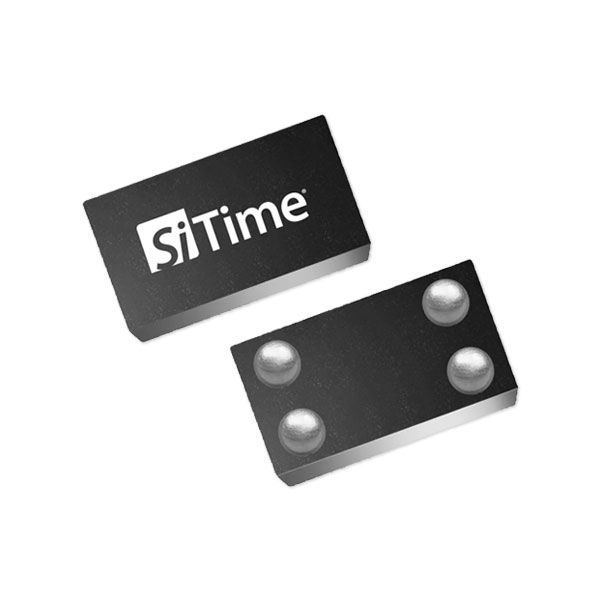

SIT1552

SiTime's TempFlat MEMS technology enables the first 32 kHz TCXO in a 1.2mm2 chip-scale package, the world's smallest footprint. Typical core supply current is only 1 μA. And unlike standard oscillators, the SiT1552 features NanoDrive™, a factory-programmable output that reduces voltage swing to minimize power. The SiT1552 is factory calibrated over multiple temperature points to guarantee extremely tight frequency stability from ±5 ppm to ±20 ppm (initial and over temperature).

Specifications

Features

±10 ppm all-inclusive frequency stability

• Improved local timekeeping and improved system power with less dependency on network timekeeping updates with mobile and wearable devices


Smallest footprint in chip-scale (CSP)

• 1.5 x 0.8 mm: Saves board space


NanoPower: 990 nA (typ.)

• Maximizes battery life


NanoDrive™ reduced swing oscillator output

• Programmable output swing minimizes power


Internal VDD supply filtering

• Eliminates external VDD bypass capacitor to maintain ultra-small footprint
