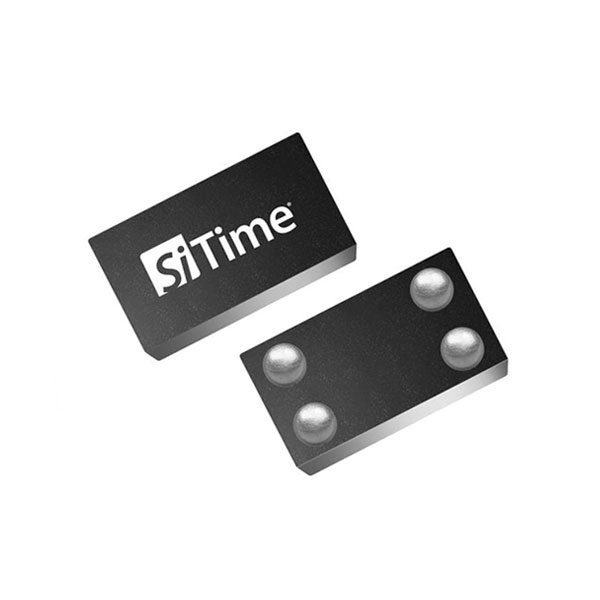

SIT8021
Low Power Oscillators; ultra small 1.5x0.8mm, Ultra-low power 100 µA
- Бренд： SITIME
- Размер/Корпус： 1.5 x 0.8 x 0.55 mm
- Параметр： 1-26MHz
- Напряжение питания： 1.8,2.25-3.63V
- Тип выхода： LVCMOS
- Допуск частоты： ±50,±100ppm
- Рабочая температура： -40℃~+85℃
- Корпус： 4P 1508
- Применение： Earbuds, Medical Bands
- Параметры продукта
- Бренд： SITIME
- Размер/Корпус： 1.5 x 0.8 x 0.55 mm
- Параметр： 1-26MHz
- Напряжение питания： 1.8,2.25-3.63V
- Тип выхода： LVCMOS
- Допуск частоты： ±50,±100ppm
- Рабочая температура： -40℃~+85℃
- Корпус： 4P 1508
- Применение： Earbuds, Medical Bands
The SiT8021 is an ultra small, low power and light-weight MHz oscillator. This oscillator can be factory programmed to any frequency from 1.000000 MHz to 26.000000 MHz to optimize system performance. It is up to 90% lower in power consumption and 40% smaller compared to quartz oscillators. The unmatched combination of ultra-low power, ultra-small package, and wide frequency range make this device ideal for power-sensitive and space-constrained applications.
Specifications
| Frequency | 1 to 26 MHz |
| Frequency Stability (ppm) | ±50, ±100 |
| Operating Temperature Range (°C) | -20 to +70, -40 to +85 |
| Package Type (mm²) | 1.5x0.8 |
| Oscillator Type | XO-SE |
| Voltage Supply (V) | 1.8, 2.25 to 3.63 |
| Features | Ultra-low power, Smallest size |
Features
Ultra-low power: 100 µA
- Extended battery life
Tiny footprint: 1.5 x 0.8 mm
- Smaller PCB
Flexible frequencies: 1 MHz to 26 MHz
- Optimal choice for best system performance
Drives multiple loads
- BOM savings
- Space savings
