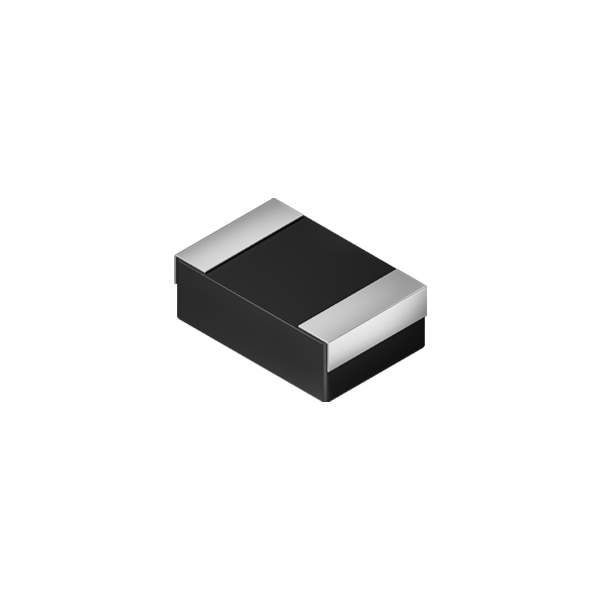

AS3A252012
Metal material for large current and low loss, Closed magnetic circuit design reduces leakage flux
- Brand： Sunlord
- Size/Package： 2.5×2.0×1.2mm
- Parameter： 0.1-3.3μH
- Rated Current： 2.0-8.0A
- Package： SMD
- Operating Temp： -50℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 2.5×2.0×1.2mm
- Parameter： 0.1-3.3μH
- Rated Current： 2.0-8.0A
- Package： SMD
- Operating Temp： -50℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Molded Power Inductors | AS3A252012
Product Introduction
Sunlord AS3A252012 is a metal-alloy molded one-piece automotive power inductor (metric 2520) qualified to AEC-Q200. Iron-alloy powder compression forms a closed magnetic circuit with minimal leakage flux, delivering Isat up to 12.8A across -55°C to +150°C.
Core Advantages
- Molded one-piece structure: iron-alloy compression eliminates air gaps — no acoustic noise, high shock resistance.
- Isat up to 12.8A: ultra-strong DC-bias performance in the 2520 class.
- Ultra-low DCR from 4mΩ: minimal conduction loss for high-efficiency DC-DC.
- Closed magnetic circuit: low leakage flux protects adjacent T-BOX and V2X circuitry.
- AEC-Q200 qualified: halogen-free, RoHS compliant, -55~+150°C range.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 2520 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 0.1μH–3.3μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.004 Ω–0.114 Ω (typ.) |
| Saturation Current (Isat) | 2.7A–12.8 A (typ.) |
| RMS Current (Irms) | 2.2A–12A |
Cross Reference & Replacement
Cross-reference alternatives: TDK (AEC-Q200 molded one-piece, same footprint), Murata (metal-alloy power inductors with stable supply) and Microgate (short lead-time alternative). AS3A252012 matches their pads and molded-structure characteristics.
Applications
LED headlight drivers, ambient lighting, DRL
BMS, OBC, DC-DC converters
infotainment, instrument cluster, displays
T-BOX modules, V2X units, gateways
FAQ
Q: What is a molded one-piece inductor?
A: Metal-alloy powder is compressed into a single body around the coil — closed magnetic circuit, no glue joints, no acoustic noise and excellent shock resistance.
Q: Does AS3A252012 whine under load?
A: No — the one-piece molded structure eliminates the air gap that causes audible coil noise.
