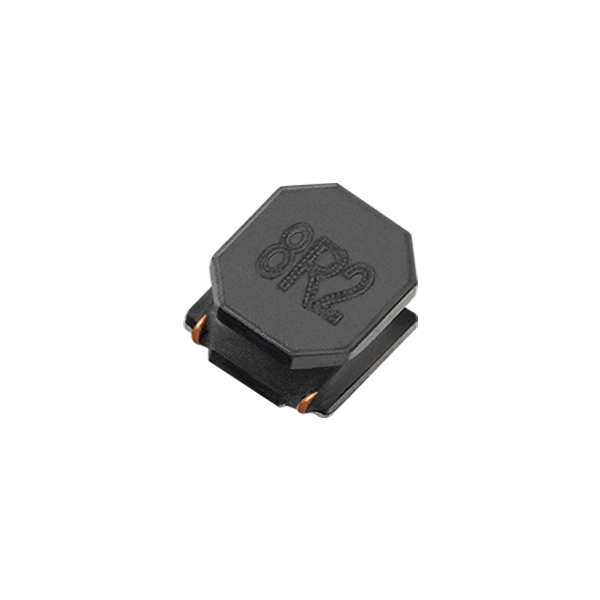

ASWPA6055S
Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
- Brand： Sunlord
- Size/Package： 6.0×6.0×5.5mm
- Parameter： 3.3-470μH
- Rated Current： 0.45-3.95A
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Infotainment system/LED Lighting/Airbag/ADAS
- Parameters
- Brand： Sunlord
- Size/Package： 6.0×6.0×5.5mm
- Parameter： 3.3-470μH
- Rated Current： 0.45-3.95A
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Infotainment system/LED Lighting/Airbag/ADAS
Automotive Power Inductors | ASWPA6055S
Product Introduction
Sunlord ASWPA6055S is the 6055 member of the AEC-Q200 ASWPA automotive power inductor series. Magnetic-glue full shielding plus a closed magnetic circuit with 3.3–470μH coverage and DCR from 22mΩ serves LED headlights, BMS, OBC and high-power DC-DC converters.
Core Advantages
- 3.3–470μH wide range: from power stages to high-value EMI chokes in the 6055 footprint.
- Low DCR from 22mΩ: efficient mid/high-power automotive conversion.
- Magnetic-glue full shielding: coated closed magnetic circuit for low leakage flux.
- SRF 2.4–32MHz: stable switching performance across automotive frequencies.
- AEC-Q200 qualified: halogen-free, RoHS compliant, -55~+125°C.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 6055 |
| Operating Temperature | -55°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 3.3μH–470μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.022 Ω–1.8 Ω (typ.) |
| Self-Resonant Frequency (SRF) | 2.4MHz–32MHz |
| Saturation Current (Isat) | 0.54A–6 A (typ.) |
| RMS Current (Irms) | 0.55A–4.6A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: Cyntec (same-size magnetic-glue shielded wire-wound), Vishay (AEC-Q200 power inductors with global coverage) and Microgate (short lead-time option). ASWPA6055S matches their pads and shielding characteristics.
Applications
LED headlight drivers, ambient lighting, DRL
BMS, OBC, high-power DC-DC
infotainment, instrument cluster, displays
ADAS domain controllers, LiDAR/radar power
FAQ
Q: What inductance does ASWPA6055S cover?
A: 3.3μH to 470μH at ±20% — suitable for both power stages and EMI filter chokes.
Q: Is ASWPA6055S drop-in for Cyntec 6055 parts?
A: Yes — metric 6055 pads, matching DCR/Isat and the same magnetic-glue shielding with AEC-Q200.
