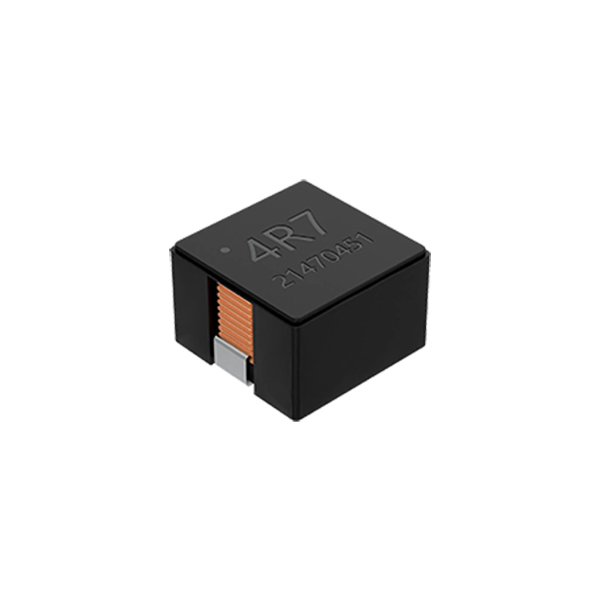

AWPE101006H

Product Introduction

Sunlord AWPE101006H is an ultra-compact AEC-Q200 automotive power inductor in the 1006 size. Despite its 1.0×1.0×0.6mm body it delivers Isat up to 25.6A with DCR from 2.3mΩ across -55°C to +150°C, for LED lighting, BMS, OBC and DC-DC rails.

Core Advantages

• Extreme power density: Isat up to 25.6A from a 1.0×1.0×0.6mm package.
• Ultra-low DCR from 2.3mΩ: near-lossless conduction in high-current rails.
• Wide -55~+150°C range: engine-compartment and high-ambient tolerant.
• AEC-Q200 qualified: automotive reliability, halogen-free and RoHS compliant.
• Space-saving 1006: frees board area in dense automotive power trees.

Key Specifications

Cross Reference & Replacement

Cross-reference alternatives: TDK (AEC-Q200 ultra-compact power inductors), Murata (globally available automotive equivalents) and Microgate (short lead-time option). AWPE101006H matches their pads and core electricals.

Applications

FAQ

Q: How can such a small inductor carry 25.6A?

A: Sunlord's AWPE platform combines low-loss magnetic materials and thick flat wire — extreme power density in the 1006 class.

Q: Is AWPE101006H qualified for +150°C?

A: Yes — AEC-Q200 qualified with an operating range of -55°C to +150°C.
