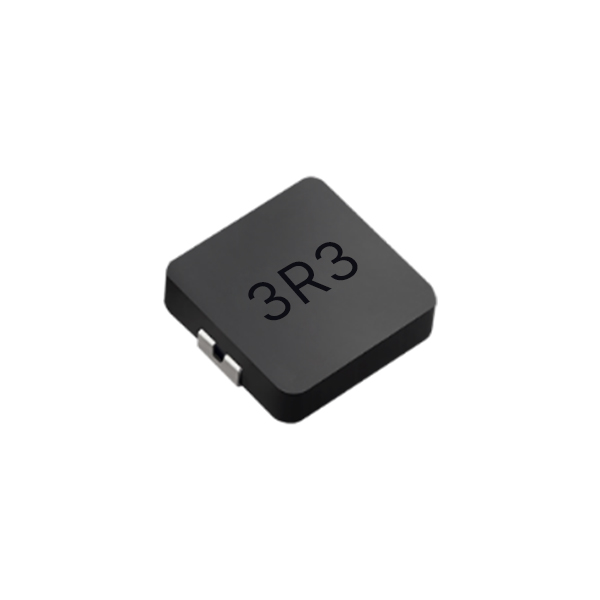

MWSA0618S
Ferroalloy material, high saturation current, low DCR. Closed magnetic circuit design with low magnetic flux leakage interference.
- Brand： Sunlord
- Size/Package： 7.0 x 6.6 x 1.6 mm
- Parameter： 0.1 - 22μH
- Rated Current： 2.3 - 38A
- Package： SMD
- Operating Temp： -55℃~+125℃
- Applications： High-end mobile phones / tablets / 5G modules / servers / base stations, and other DC-DC converter power modules.
- Parameters
- Brand： Sunlord
- Size/Package： 7.0 x 6.6 x 1.6 mm
- Parameter： 0.1 - 22μH
- Rated Current： 2.3 - 38A
- Package： SMD
- Operating Temp： -55℃~+125℃
- Applications： High-end mobile phones / tablets / 5G modules / servers / base stations, and other DC-DC converter power modules.
MWSA0618S | Molded Power Inductors (MWSA-S)
Product Introduction
Sunlord MWSA0618S is a molded power inductor from the MWSA-S series in 0618 (7.0×6.6×1.6mm). An iron-alloy powder body forms a closed magnetic circuit with minimal leakage flux; halogen-free and RoHS compliant, covering 0.10μH~22μH (0618Sseries) from -55°C~+125°C (including self-heating) for TV, GPU, memory, notebook, tablet, communications and industrial DC-DC converters.
Core Advantages
- Molded Power Inductors (MWSA-S): 0618 (7.0×6.6×1.6 mm), 0.10–22 μH, Isat up to 38 A — iron-alloy molded closed magnetic circuit — minimal leakage flux, halogen-free.
- Low DCR, high current: DCR 2.3mΩ~350mΩ; saturation current up to 38A — high DC-bias performance in a 0618 body.
- Compliance: Halogen-free, RoHS compliant.
- Supply: YQM ELECTRONICS holds Sunlord stock with fast samples, datasheets and FAE support for volume programs.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Molded Power Inductor (MWSA-S series) |
| Package Size | 0618 (7.0×6.6×1.6mm) |
| Operating Temperature | -55°C~+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance Range | 0.10μH~22μH (0618Sseries) |
| Tolerance | ±20% (some P/Ns ±30%) |
| DC Resistance (DCR) | 2.3mΩ~350mΩ |
| Saturation Current (Isat) | 1.84A~38A |
| RMS Current (Irms) | 1.4A~25A |
Cross Reference & Replacement
Cross-reference alternatives:
- Taiyo Yuden — A same-spec part from a globally recognized passive-component maker — compatible footprint, matched process and key parameters, stable worldwide supply; a proven drop-in for this application class.
- TDK — A same-spec part from a leading passive-component maker — matched core features such as magnetic shielding and low DCR; widely used as an alternative in the supply chain.
- Microgate — A same-spec part from a leading Chinese passive-component maker — land-pattern compatible, ample domestic capacity, short lead times and strong cost-performance for localized BOM programs.
Applications
smartphones, smart TVs and set-top boxes
notebooks, desktops, tablets and servers
VR/AR headsets, smart watches, portable game consoles
industrial equipment, instruments and DC-DC converter stages
FAQ
Q: What is the advantage of an iron-alloy molded inductor?
A: The metal-alloy powder is compressed into a solid body — a closed magnetic circuit with strong DC-bias performance, minimal leakage and low buzz noise under load.
Q: Is MWSA0618S halogen-free?
A: Yes — the MWSA-S series is halogen-free and RoHS compliant.
