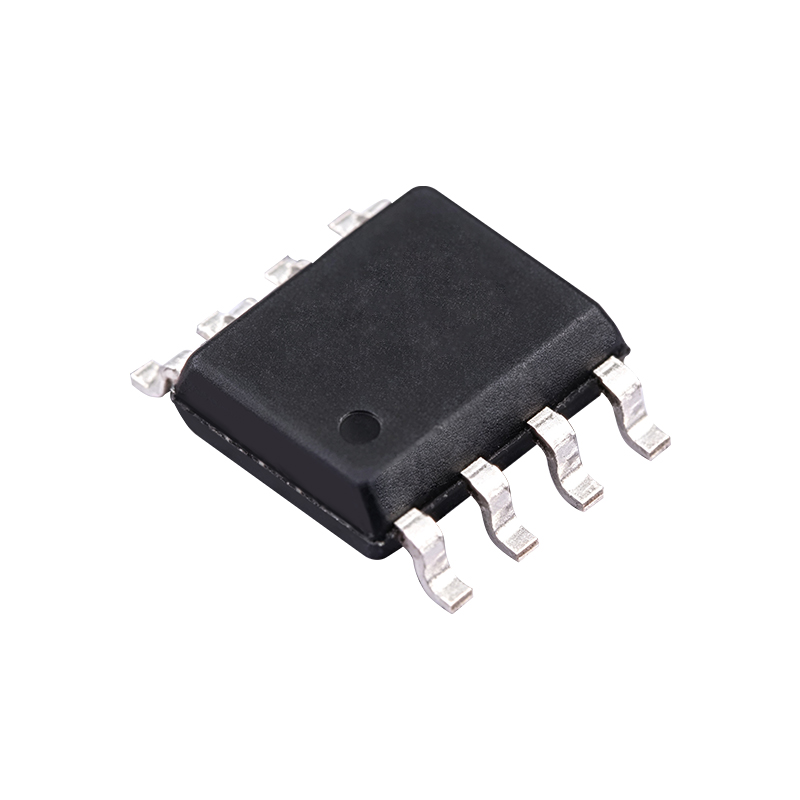

The NCE4435 uses advanced trench technology to achieve excellent RDS(ON) performance and low gate charge, and it operates with gate voltages as low as 4.5V.

Core Advantages

Low on-resistance; high power and current capability; 100% factory reliability screening; strong avalanche ruggedness; high-side P-channel switch simplifies circuitry

Key Features

Low on-resistanceRds(on) max 20mΩ at VGS=-10V, with low heating and low conduction loss under high-current conditions; supports 4.5V low-voltage gate drive, matching the output levels of mainstream power management ICs;

High power and high current capabilitySOP-8L package, continuous current -9A, power dissipation 3.1W, a major thermal improvement over SOT-23, allowing stable operation in continuous multi-ampere current scenarios;

100% factory reliability screening and strong avalanche ruggedness100% testing of UIS avalanche, Rg and ΔVds; single-pulse avalanche energy EAS=174mJ; higher reliability in inductive load and surge environments, reducing the risk of device failure;

High-side P-channel switch simplifies circuitryused as a high-side power switch, no bootstrap circuit is needed, making it suitable for battery charge/discharge control, power path switching and reverse-polarity protection; the built-in body diode supports freewheeling for inductive loads; gate withstand voltage ±20V provides ample gate overvoltage margin.

Alternative Products and Reasons

STANSON: STP4407;
ON: SI4435DY;
Vishay: Si4835DDY. Reason for replacement: matched parameters, pin-compatible, pin-to-pin compatible, no PCB redesign required, enabling cost reduction.

Applications

🌐

Consumer

notebooks, all-in-one peripheral boards, smart locks, Bluetooth speakers, robot vacuums, floor washers, high-power smart home modules, beauty devices;

💻

Power

mobile power supplies, small energy storage modules, outdoor portable power supplies;

📶

Lighting

high-power LED strips, RGB light boards, stage light boards, PWM dimming, high-current LED power switches;

🔬

Security

network cameras, NVRs, access control equipment, high-power router sub-boards.

FAQ

Q: What applications is this product suitable for?

A: The NCE4435 is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.

Q: Are samples available?

A: Yes, YQM ELECTRONICS provides free samples of NCE4435 for evaluation. Contact our sales team for quick delivery.

Q: What is the minimum order quantity?

A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.

Get NCE4435 Samples & Technical Support

Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.

Contact YQM Customer Service
