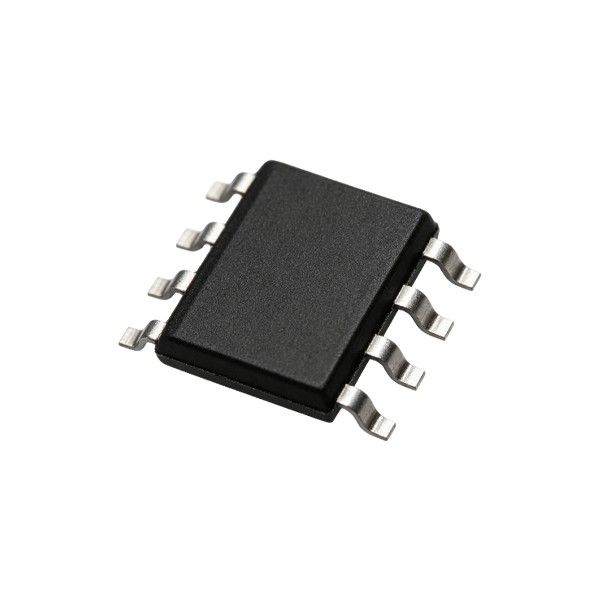

NCE4614
Low on-resistance and gate charge, high power and high current handling.
- Brand： NCE
- Size/Package： SOP-8
- Parameter： -40V/40V
- RDS(ON)@4.5V TYP： N:19mΩ P:34mΩ
- RDS(ON)@10V TYP： N:14mΩ P:29mΩ
- VGS(th)： N:1.5V P:-1.5V
- ID： N:8A P:-7A
- Operating Temp： -55-150℃
- Applications： Robot vacuum, gimbals, toy robots, handheld vacuum cleaners, beauty devices, power banks.
- Parameters
- Brand： NCE
- Size/Package： SOP-8
- Parameter： -40V/40V
- RDS(ON)@4.5V TYP： N:19mΩ P:34mΩ
- RDS(ON)@10V TYP： N:14mΩ P:29mΩ
- VGS(th)： N:1.5V P:-1.5V
- ID： N:8A P:-7A
- Operating Temp： -55-150℃
- Applications： Robot vacuum, gimbals, toy robots, handheld vacuum cleaners, beauty devices, power banks.
NCE4614 | 12-300V Dual MOS
Product Introduction
The NCE4614 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This complementary N-channel and P-channel MOSFET is suitable for building level-shifting high-side switches and for many other applications.
Core Advantages
- Low on-resistance, low gate charge, high power and high current handling, integrated N+P complementary dual MOSFETs with a body diode in each channel.
Key Features
Alternative Products and Reasons
- AOS: AO4614.
- Reason: parameters matched, package compatible, no PCB redesign required, enabling cost reduction through domestic sourcing.
Applications
PD / USB fast charging, low-power switching power supplies, power banks, small chargers;
handheld power tools, robot vacuum, small fans, toy motors;
LED strips, LED displays, constant-current switching, PWM dimming, high-side and low-side power switching;
Related Products
FAQ
Q: What applications is this product suitable for?
A: The NCE4614 is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of NCE4614 for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
