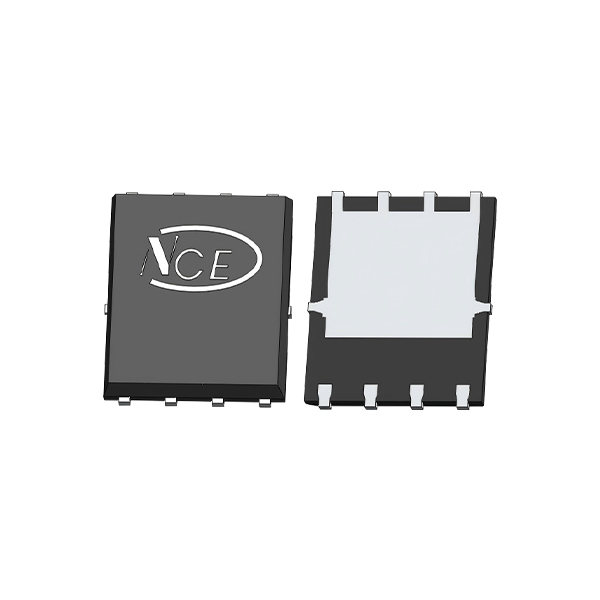

NCEP011NH40GU
Superior FOM, ultra-low RDS(ON), 150C rated
- Brand： NCE
- Size/Package： PDFN5X6-8L
- Parameter： 0.85mΩ
- VDS： 40V
- RDS(ON)@4.5V TYP： 1.3mΩ
- VGS(th)： 1.5V
- ID： 313A
- Operating Temp： -55-150℃
- Applications： Robotics (Vacuum, Lawn Mower)
- Parameters
- Brand： NCE
- Size/Package： PDFN5X6-8L
- Parameter： 0.85mΩ
- VDS： 40V
- RDS(ON)@4.5V TYP： 1.3mΩ
- VGS(th)： 1.5V
- ID： 313A
- Operating Temp： -55-150℃
- Applications： Robotics (Vacuum, Lawn Mower)
N-Channel MOSFETs | NCEP011NH40GU 40V
Product Introduction
NCEP011NH40GU is a 40V Super Trench III MOSFET from NCE/新洁能. 0.85mΩ RDS(on), 313A ID in PDFN5X6-8L package. Operating temperature: -55-150℃.
40V Super Trench III MOSFET. Ultra-low RDS(on), excellent FOM, 150°C, 100% UIS/ΔVds tested. For high-frequency switching applications.
Core Advantages
- Advanced Super Trench III Technology: 0.85mΩ RDS(on) — delivering low conduction losses and high efficiency in switching applications.
- High Current Capability: Rated 313A in PDFN5X6-8L — optimized for power-dense designs requiring compact footprint with robust current handling.
- Wide Temperature Range: Operating from -55-150℃ — suitable for industrial and harsh-environment applications.
- NCE Quality: Manufactured with advanced process technology. 100% tested for reliability. Competitive domestic supply chain advantage.
Key Features
Applications
DC-DC, SMPS, load switching, battery protection
Motor drives, PLC, automation, instrumentation
BMS, DC-DC, infotainment, body electronics
Controllers, smart appliances, IoT devices
Solar inverters, energy storage, UPS
Switching regulators, power management, motor control
Related Products
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support from NCE/新洁能.
