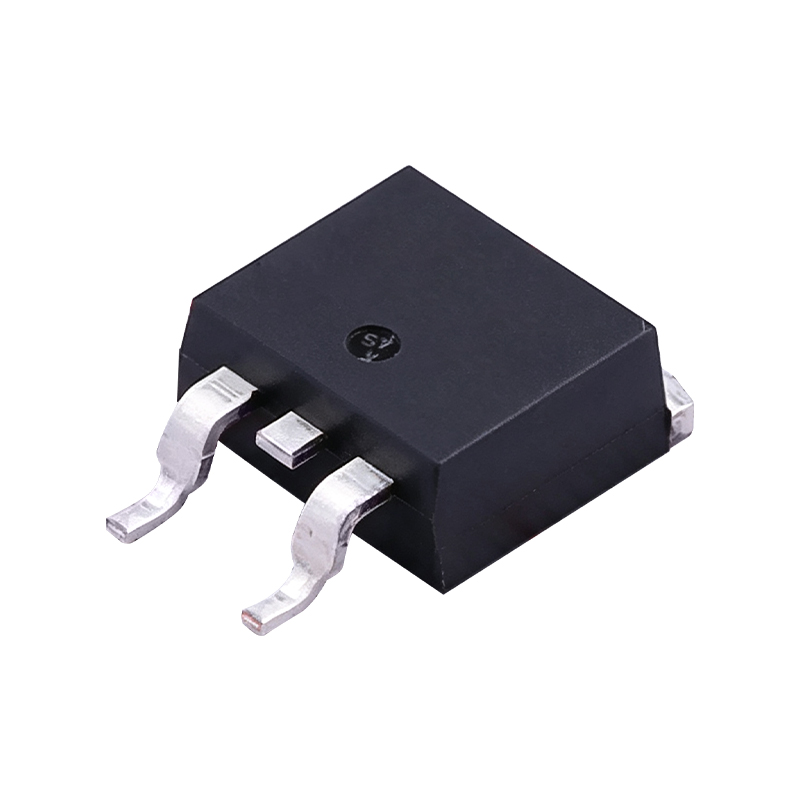

NCEP039N10D
Excellent FOM, ultra-low on-resistance, 175℃
- Brand： NCE
- Size/Package： TO-263
- Parameter： 100V
- RDS(ON)@4.5V TYP： /
- RDS(ON)@10V TYP： 3.5mΩ
- VGS(th)： 3V
- ID： 135A
- Operating Temp： -55~175℃
- Applications： DC-DC converter, synchronous rectification, high-frequency switching, server power supply, telecom power supply
- Parameters
- Brand： NCE
- Size/Package： TO-263
- Parameter： 100V
- RDS(ON)@4.5V TYP： /
- RDS(ON)@10V TYP： 3.5mΩ
- VGS(th)： 3V
- ID： 135A
- Operating Temp： -55~175℃
- Applications： DC-DC converter, synchronous rectification, high-frequency switching, server power supply, telecom power supply
NCEP039N10D | 12-300V NMOS
Product Introduction
The NCEP039N10D uses Super Trench II technology, uniquely optimized to deliver the most efficient high-frequency switching performance. The extremely low combination of Rds(on) and Qg minimizes both conduction loss and switching loss, making the device ideal for high-frequency switching and synchronous rectification applications.
Core Advantages
- Excellent FOM (figure of merit), high current capability, built-in body diode, high temperature capability.
Key Features
Alternative Products and Reasons
- TI: CSD19535KTT;
- Vishay: SUM70030E;
- Infineon: IPB027N10N5;
- Vishay: SQM120N10-3m8;
- Replacement rationale: parameter matched, pin compatible. Pin-to-pin compatible, no PCB redesign required, enabling cost reduction.
Applications
high-power industrial SMPS, telecom / server DC-DC modules, high-power adapters, synchronous rectification chargers;
high-power power tools, vacuum cleaners, robot vacuum, high-power BLDC motor controllers;
outdoor portable energy storage power supplies, high-power lithium battery charge/discharge boards.
Related Products
FAQ
Q: What applications is this product suitable for?
A: The NCEP039N10D is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of NCEP039N10D for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
