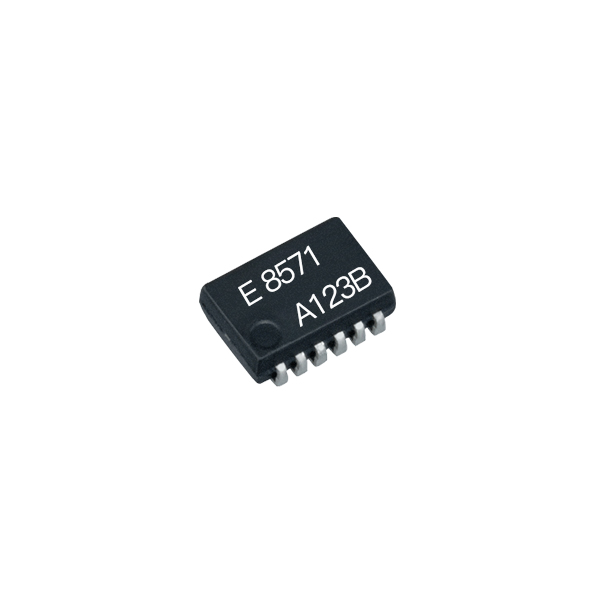

RX-8571LC
- Brand： EPSON
- Size/Package： 3.6 x 2.4 x 1.2 mm
- Parameter： ±5ppm
- Supply Voltage： 1.6-5.5V
- Interface： I2C
- Freq： 32.768KHz
- Operating Temp： -40~+85℃
- Package： VSOJ-12
- Parameters
- Brand： EPSON
- Size/Package： 3.6 x 2.4 x 1.2 mm
- Parameter： ±5ppm
- Supply Voltage： 1.6-5.5V
- Interface： I2C
- Freq： 32.768KHz
- Operating Temp： -40~+85℃
- Package： VSOJ-12
- Built in frequency adjusted 32.768 kHz crystal unit
- Interface Type : I2C-Bus interface (400kHz)
- Operating voltage range : 1.6V to 5.5V
- Wide voltage for timekeeping : 1.3V to 5.5V
- Low backup current : 220 nA / 3V (Typ.)
- 32.768kHz frequency output function : C-MOS output With Control Pin
- Built in user RAM : 128bit (8bit x 16, SRAM)
- The various functions include full calendar, alarm, timer,etc.
(Long-running timer : 65535 hours)
