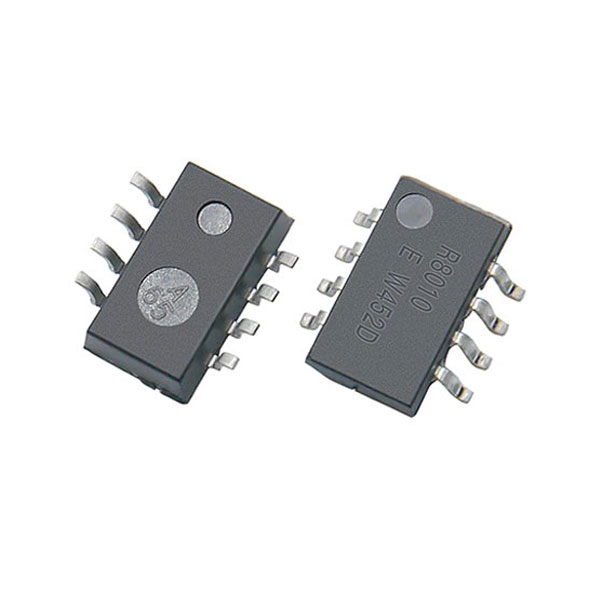

RX8010SJ
Low Current Consumption I2C-Bus Interface Real Time Clock Module
- Brand： EPSON
- Size/Package： 7.0 x 6.0 x 2.6 mm
- Parameter： ±5ppm
- Supply Voltage： 1.6-5.5V
- Interface： I2C
- Freq： 32.768KHz
- Operating Temp： -40~+85℃
- Package： SOP-8
- Parameters
- Brand： EPSON
- Size/Package： 7.0 x 6.0 x 2.6 mm
- Parameter： ±5ppm
- Supply Voltage： 1.6-5.5V
- Interface： I2C
- Freq： 32.768KHz
- Operating Temp： -40~+85℃
- Package： SOP-8

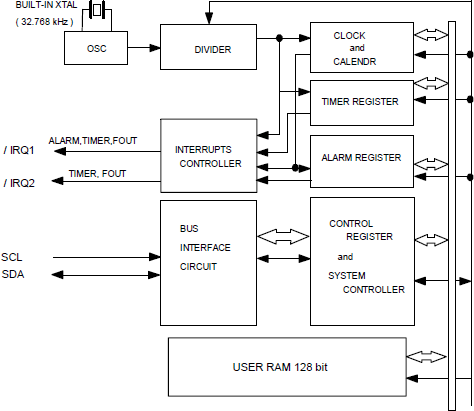

Block diagram
Overview
- Interface Type
- I2C-Bus Interface.(Hi-speed bus specifications 400kHz)
- Frequency output function
- It may select a CMOS or open drain output
- Output frequency can be selected as 32.768kHz, 1024Hz, 1Hz.
- Timer function
- Timer function can be set up between 1/4096 second and 65535 hours.
- Timing period are 1hour, 1min, 64Hz, 4096Hz.
- It is recorded automatic to TF-bit at the time of event occurrence,and possible to output with /IRQ1 or /IRQ2 pin.
- Alarm function
- Alarm function can be set to day of week,day, hour, and minute.
- It is recorded automatic to AF-bit at the time of event occurrence,and possible to output with /IRQ1 pin.
- Built-in RAM
- 128 bit (8 bit x 16 word)
Specifications *Refer to application manual for details.
Recommend Operating Conditions
| Item | Symbol | Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Power voltage | VDD | - | 1.6 | 3.0 | 5.5 | V |
| Clock voltage | VCLK | - | VLOW | 3.0 | 5.5 | V |
| Operating temperature | TOPR | - | -40 | +25 | +85 | °C |
Frequency characteristics
| Item | Symbol | Condition | Rating | Unit |
|---|---|---|---|---|
| Frequency tolerance | Δ f/f | Ta=+25°C VDD=3.0V | 5±23 * | ×10-6 |
| Oscillation Start-up time | tSTA | Ta=+25°C VDD=1.6V~5.5V | 1Max | s |
| Ta=-40°C~+85°C VDD=1.6V~5.5V | 3Max | s |
*Equivalent to ±1 minute of monthly deviation
Current consumption characteristics
Ta=-40°C to +85°C
| Item | Symbol | Conditions | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|---|---|
| Current Consumption | lBK | Input pins are"L" fCLK=0Hz /IRQ1.2=OFF, TSEL2="1" | VDD=5V | - | - | 350 | nA |
| VDD=3V | - | 160 | 320 | ||||
| l32k | fCLK=0Hz /IRQ1:32.768kHzON, TSEL2="1" | VDD=5V | - | 5.5 | 7.0 | µA | |
| VDD=3V | - | 3.0 | 4.0 | ||||
Pin function
| Signal Name | Input/ Output | Function |
|---|---|---|
| SCL | Input | This is a shift clock input pin for serial data transmission. |
| SDA | Bi-directional | This is the data input/output pin for serial data transfer. |
| IRQ1 | Output | This pin outputs interrupt signals ("L" level) for alarm, timer, time update, and 32.768kHz. This is an N-ch open-drain output. |
| /IRQ2 | Output | This pin outputs interrupt signals ("L" level) for timer and FOUT. This is a C-MOS output. |
| VDD | Supply | This is a power-supply pin. |
| GND | Supply | This pin is connected to a ground. |
Terminal connection / External dimensions
(Unit: mm)
The metal case inside of the molding compound may be exposed on the top or bottom of this product.
This purely cosmetic and does not have any effect on quality, reliability or electrical specs.
Footprint
(Unit: mm)
To maintain stable operation, provide a 0.1uF by-pass capacitor
at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND).
