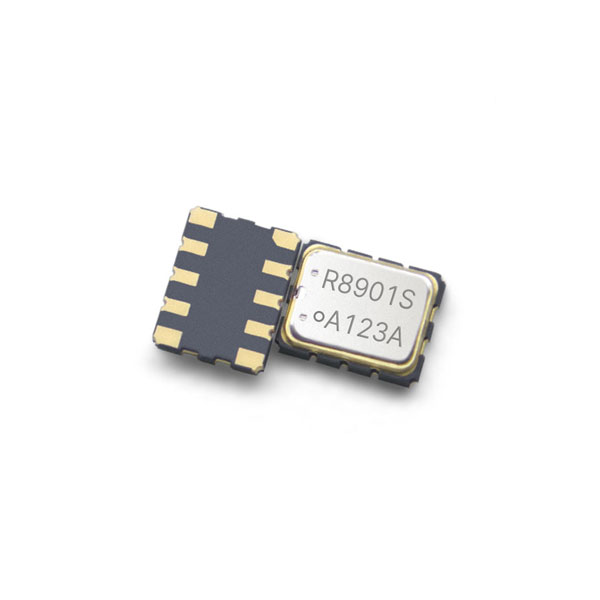

RX8901CE
High stability, Low current consumption, Time stamp function
- Brand： EPSON
- Size/Package： 3.2 x 2.5 x 1.0 mm
- Parameter： ±3,±5,±8ppm
- Supply Voltage： 1.6-5.5V
- Interface： I2C
- Freq： 32.768KHz
- Operating Temp： -40~+105℃
- Package： 10P 3225
- Parameters
- Brand： EPSON
- Size/Package： 3.2 x 2.5 x 1.0 mm
- Parameter： ±3,±5,±8ppm
- Supply Voltage： 1.6-5.5V
- Interface： I2C
- Freq： 32.768KHz
- Operating Temp： -40~+105℃
- Package： 10P 3225

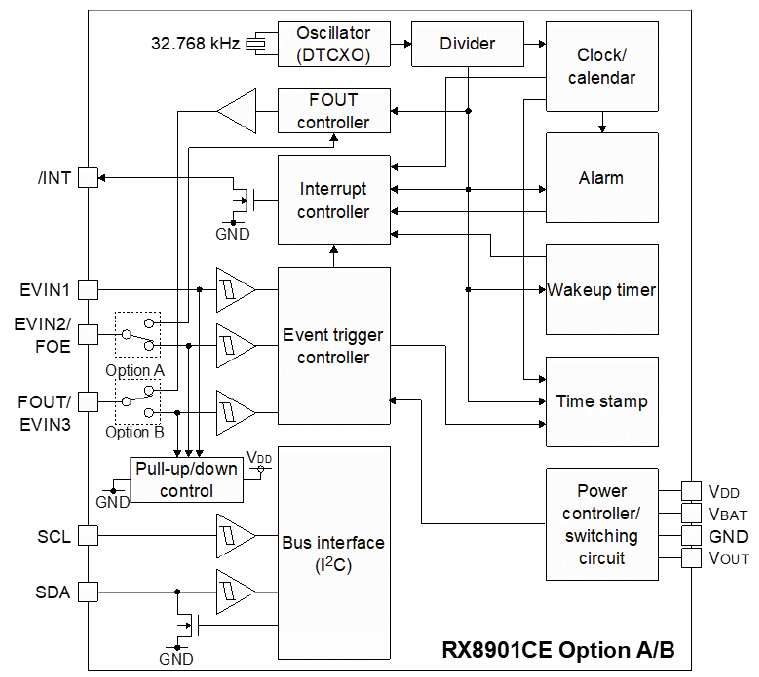

Block diagram

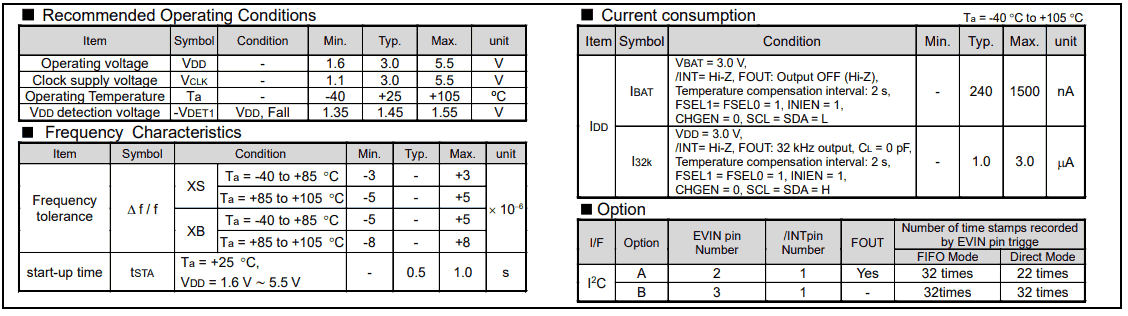

Specifications (characteristics)

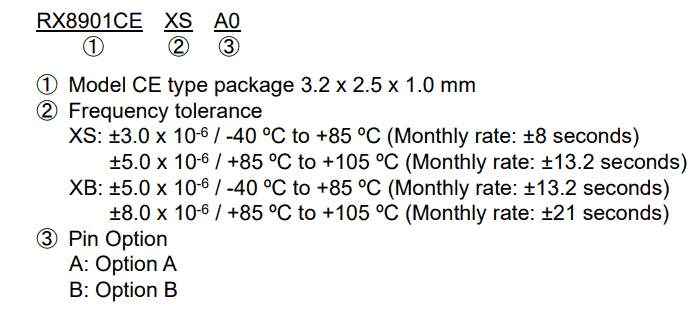

Product name and number

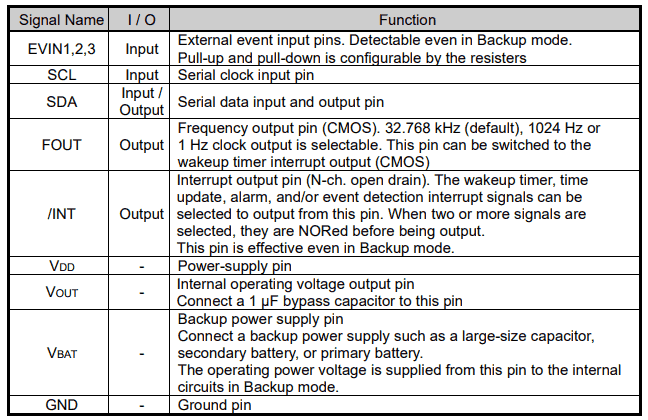

Pin function

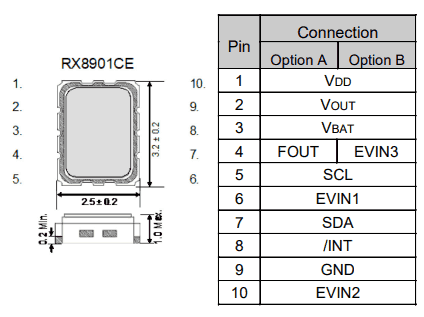

External dimensions / Terminal connection
(Unit: mm)
Footprint
(Unit: mm)
To maintain stable operation, provide a 0.1uF by-pass capacitor
at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND)
