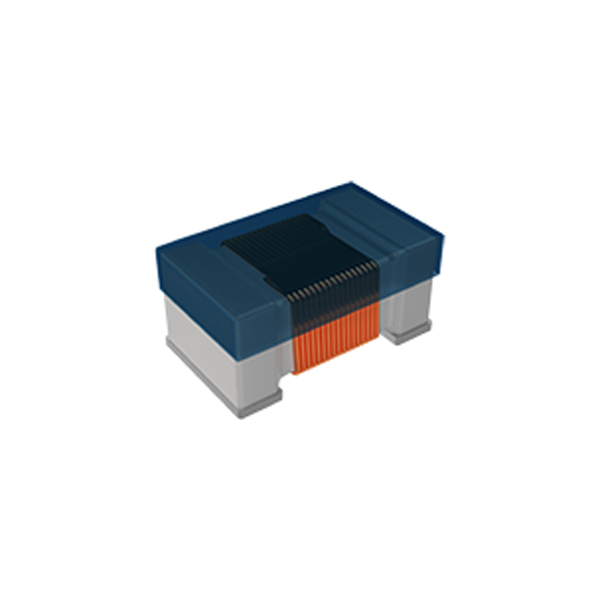

SDWL3216C
Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 3216 (1206 inch)
- Parameter： 3.3 - 1200nH
- Rated Current： 300 -1000mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 3216 (1206 inch)
- Parameter： 3.3 - 1200nH
- Rated Current： 300 -1000mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | SDWL3216C
Product Introduction
Sunlord SDWL3216C is the 1206 (3.2×1.6mm) member of the SDWL-C wire-wound ceramic RF inductor family. High-purity ceramic, precision winding and five-side tin plating give high Q (20–45), high SRF and up to 1000mA for high-frequency communication and networking equipment.
Core Advantages
- High Q 20–45: excellent HF performance for matching and resonance.
- Up to 1000mA rated: strong current for the 1206 RF class.
- 3.3–1200nH range: covers mainstream RF matching and filtering values.
- Five-side tin plating: reliable soldering and stable HF behavior.
- Halogen-free RoHS: -40~+125°C operation.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 3216 |
| Operating Temperature | -40°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 3.3nH–1200nH |
| Q Factor | 20–45 |
| Self-Resonant Frequency (SRF) | 380MHz–6200MHz |
| DC Resistance (DCR) | 0.07 Ω–3.2 Ω |
| Rated Current (Ir) | 300mA–1000mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). SDWL3216C matches their pads and HF characteristics.
Applications
RF matching, filtering, resonance
broadband front-ends, RF modules
wireless devices
FAQ
Q: What current can SDWL3216C carry?
A: 300–1000mA depending on value — strong for the 1206 RF class.
Q: What is the SRF of SDWL3216C?
A: 380MHz to 6200MHz across the range, covering HF communication bands.
