SG-210STF

  • Brand: EPSON
  • Size/Package: 2.5 x 2.0 x 0.8 mm
  • Parameter: 4-72MHz
  • Supply Voltage: 1.8-3.3V
  • Output: CMOS
  • Freq Tolerance: ±25,±50ppm
  • Operating Temp: -40℃~+105℃
  • Package: 4p 2520
  • Applications: IoT, Wearable device, Data center, Storage
  • Parameters
  • Brand: EPSON
  • Size/Package: 2.5 x 2.0 x 0.8 mm
  • Parameter: 4-72MHz
  • Supply Voltage: 1.8-3.3V
  • Output: CMOS
  • Freq Tolerance: ±25,±50ppm
  • Operating Temp: -40℃~+105℃
  • Package: 4p 2520
  • Applications: IoT, Wearable device, Data center, Storage

SG-210STF | 1–75 MHz CMOS Oscillator with Photolithography Quartz Processing

SG-210STF | 1–75 MHz CMOS Oscillator with Photolithography Quartz Processing

1–75 MHzFrequency
1.6–3.6 VSupply Voltage
CMOSOutput
±25 / ±50 ppmStability
-40~+105°COperating Temp.
2520 (2.5×2.0×0.8 mm)Package

Product Introduction

The SG-210STF is an Epson CMOS oscillator built with photolithography-based quartz processing. It targets the consistency, aging and cost pain points of conventional ground-quartz oscillators.

YQM supplies authentic EPSON SG-210STF parts with datasheets, samples and FAE support for production programs.

SG-210STF EPSON

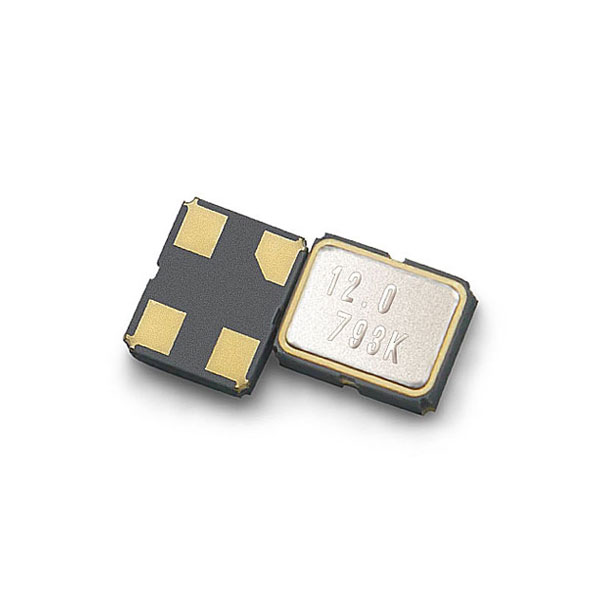

SG-210STF product image

Application Pain Points & Solutions

  • Pain: Ground-quartz oscillators vary batch to batch, causing production yield and rework issues
    Solution: Photolithography controls electrode patterns to 0.1 μm, improving batch consistency.
  • Pain: Low-cost oscillators age quickly; frequency error grows after 1–2 years
    Solution: Q value is >30% higher than comparable ground-quartz parts; aging is ±3 ppm/year max.
  • Pain: Imported high-end oscillators are expensive, while domestic parts are perceived as lower quality
    Solution: 100% Japan in-house manufacturing, 72-hour burn-in, and competitive pricing through YQM.

Core Advantages

  • Photolithography quartz process: 0.1 µm electrode patterns improve batch consistency and yield.
  • Q value >30% higher: Lower aging and more stable frequency than conventional ground quartz.
  • 100% Japan in-house manufacturing: 72-hour burn-in and full process control.
  • Competitive cost through YQM: High-end performance without the imported-brand premium.

Specifications

ParameterSymbolValueConditions
Output frequency rangef 01MHz to 75MHzPlease contact us about available frequencies.
Supply voltageV CCH: 1.6 V to 3.6 V
Storage temperatureT_stg-40°C to +125°CStorage as single product
Operating temperatureT_use-40 °C to +85 °C
-40°C to +125°C
Frequency tolerancef_tolJ: ±25 × 10 -6
Current consumptionI CC1.5mA -3.0mA Max.No load condition Maximum frequency.
Disable currentI _dis-OE=GND
SymmetrySYM45 % to 55 %50% V CC level, L_CMOS ≦ 50 pF
Output voltageV OHV CC - 0.4V Min.
V OL0.4V Max.
Output load condition(CMOS)L_CMOS15 pF Max.
Input voltageV IH80% V CC Min.OE terminal
V IL20% V CC Min.
Start-up timet_str3ms Max.t=0 at 90 % V CC ,+85°C
Frequency agingf_aging±3 × 10 -6 / year Max.+25°C, First year.

Original specification table (English).

Technical Drawings

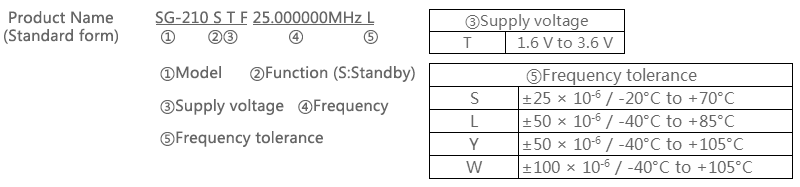

Ordering Information
EPSON 1–75 MHz CMOS Oscillator with Photolithography Quartz Processing Ordering Information
Original ordering information (English).

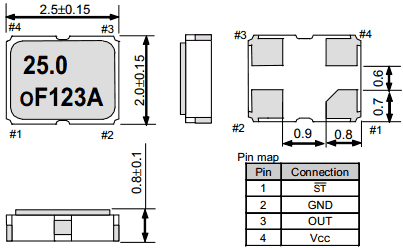

Package Dimensions
EPSON 1–75 MHz CMOS Oscillator with Photolithography Quartz Processing Package Dimensions
Package dimensions (unit: mm).
Recommended PCB Footprint
EPSON 1–75 MHz CMOS Oscillator with Photolithography Quartz Processing Recommended PCB Footprint
Recommended PCB footprint (unit: mm).

Please confirm the exact ordering code, frequency and package with YQM before production.

Applications

📡
IoT

Stable timing for compact, connected devices.

⌚
Wearables

Stable timing for compact, connected devices.

🖥️
Data center

Stable timing for compact, connected devices.

💾
Storage

Stable timing for compact, connected devices.

⚙️
Industrial control

Stable timing for compact, connected devices.

FAQ

Q: What is the MOQ and lead time for SG-210STF?

A: MOQ depends on package and frequency. Stock items ship quickly; custom frequencies typically take 4–6 weeks. Contact YQM for a quote.

Q: Do you provide samples and datasheets?

A: Yes. Samples and datasheets are available for evaluation.

Q: Can YQM support custom frequencies or packages?

A: Yes, subject to the product series. Send your target frequency, package, stability and temperature range.

Q: Are the parts authentic?

A: YQM supplies authentic EPSON parts with traceable lot information.
