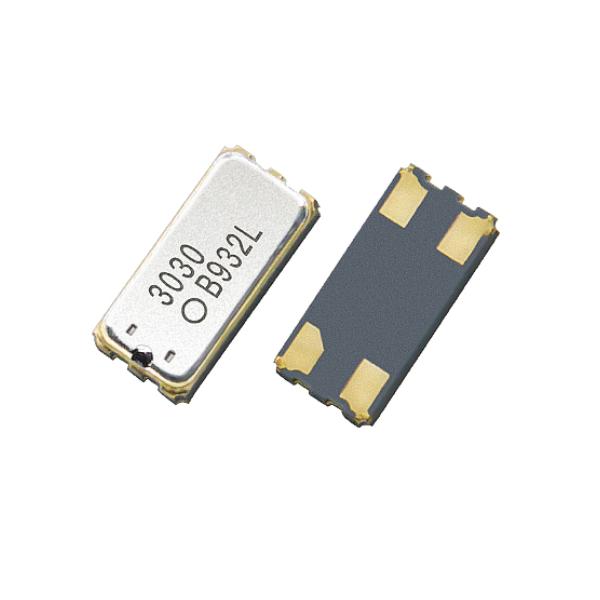

Item	Symbol	Specifications	Condition/Remarks
Output frequency range	f0	32.768 kHz
Supply voltage	VCC	1.5 V to 5.5 V
Interface power supply voltage	Vio	1.5 V to 5.5 V
Storage temperature	T_stg	-55 °C to +125 °C	Store as bare product
Operation temperature	T_use	-40 °C to +85 °C
Frequency tolerance	f_tol	5 ± 23 x10-6	+25 °C , VCC = 3.3 V
Frequency temperature	f0 - TC	+10 × 10-6 / -120 × 10-6	-20 °C to +70 °C
coefficient	f0 - TC	+10 × 10-6 / -120 × 10-6	(+25 °C is reference)
Frequency/	f0 - VCC	2 ×10-6 / V Max.	+25 °C
voltage coefficient	f0 - VCC	2 ×10-6 / V Max.	+25 °C
Current consumption	lCC	2 µA Max.	3.3 V , No load condition
Symmetry	SYM	45 % to 55 %	1/2 VCC / (Vio) level
Output voltage	VOH	Vio - 0.4 V Min.	lOH = -0.4 mA
Output voltage	VOL	0.4 V Max	lOL = 0.4 mA
Output load condition(CMOS)	L_CMOS	15 pF Max.	CMOS load
Rise time/Fall time	tr/tf	200 ns Max.	CMOS load:20 % VCC(Vio) to 80 % VCC(Vio) level
Start-up time	t_str	1 s Max.	Time at minimum Supply voltage to be 0 s +25 °C
Frequency aging	f_aging	±5 × 10-6 / year Max.	+25 °C , VCC = 3.3 V , First year

Unless otherwise stated, characteristics (specifications) shown in the above table are based on the rated operating temperature and voltage condition.

Block Diagrams

*If VIO function is not used connect #1 to Vcc

External Dimension

(Unit: mm)

Footprint

(Unit: mm)
