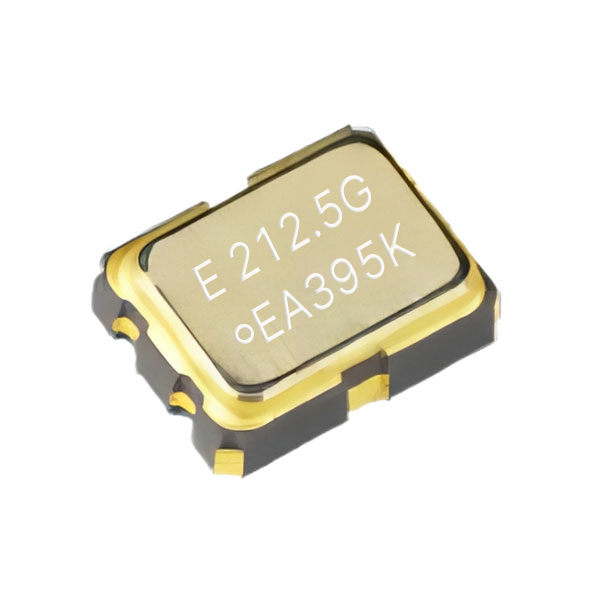

SG3225EEN
Low phase jitter 45fs; Applications: Optical module.
- Brand： EPSON
- Size/Package： 3.2 x 2.5 x 1.0 mm
- Parameter： 25-500MHz
- Supply Voltage： 2.5V,3.3V
- Output： LV-PECL
- Freq Tolerance： ±25,±50,±100ppm
- Operating Temp： -40℃~+105℃
- Package： 6P 3225
- Parameters
- Brand： EPSON
- Size/Package： 3.2 x 2.5 x 1.0 mm
- Parameter： 25-500MHz
- Supply Voltage： 2.5V,3.3V
- Output： LV-PECL
- Freq Tolerance： ±25,±50,±100ppm
- Operating Temp： -40℃~+105℃
- Package： 6P 3225
Specifications
External dimensions
(Unit: mm)
Note:
OE pin = "HIGH" or "Open" : Specified frequency output.
OE pin = "LOW" : Output is high impedance.
Footprint
(Unit: mm)
In order to achieve optimum jitter performance,
it is recommended that the capacitor (0.1 µF + 10 µF)
between Vcc and GND pin should be placed as close
to the Vcc pin as possible.
