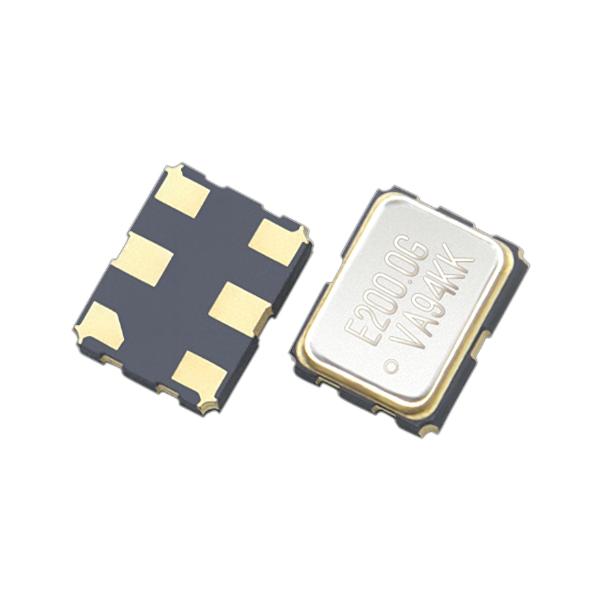

SG3225HBN

  • Brand: EPSON
  • Size/Package: 3.2 x 2.5 x 1.0 mm
  • Parameter: 100-325MHz
  • Supply Voltage: 2.5V,3.3V
  • Output: HCSL
  • Freq Tolerance: ±50ppm
  • Operating Temp: -40℃~+105℃
  • Package: 6P 3225
  • Parameters
  • Brand: EPSON
  • Size/Package: 3.2 x 2.5 x 1.0 mm
  • Parameter: 100-325MHz
  • Supply Voltage: 2.5V,3.3V
  • Output: HCSL
  • Freq Tolerance: ±50ppm
  • Operating Temp: -40℃~+105℃
  • Package: 6P 3225

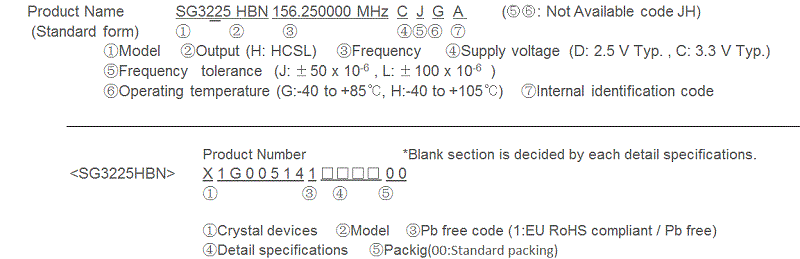

Specifications


ItemSymbolSpecificationsConditions / Remarks
Output frequency rangef0100MHz to 325MHzPlease contact us for inquiries regarding available frequencies.
Supply voltageVCCD:2.5V ±0.125V, C:3.3V ±0.165V
Storage temperatureT_stg-55℃ to +125℃Store as bare product.
Operating temperatureT_useG: -40℃ to +85℃, H: -40℃ to +105℃
Frequency tolerancef_tolJ: ± 50 × 10-6Includes initial tolerance, temperature change,
(Not available H: -40℃ to +105℃)Vcc change and 10 years aging(+25 °C)
L: ± 100 × 10-6Includes initial tolerance, temperature change,
Vcc change and 10 years aging(+25 °C)
Current consumptionICC25 mA Typ. , 35mA Max.OE=VCC,with output load
Disable currentI_dis15mA Max.OE=GND
SymmetrySYM45% to 55%At outputs crossing point
Output voltageVOH0.75 V Typ., 0.66V to 0.85VDC characteristics, single output
VOL0 V Typ., -0.15V to 0.15V
Crossing voltageVCR0.25V to 0.55V
Output load conditionL_HCSL50Ω
RS33Ω
Input voltageVIH70% VCC Min.OE terminal
VIL30% VCC Max.
Differential outputRr / Rf1 V/ns to 4V/nsBetween -0.15 V and 0.15 V of differential output
rise slew rate/ fall slew rate
Start-up timet_str10ms Max.Time at minimum supply voltage to be 0 s


Phase Jitter



Output100 MHz125 MHz156.25 MHz200 MHz322.265625 MHzSupply voltage
frequency
Phase Jitter [fs]Typ.110958575653.3V ± 0.165V
Offset Frequency
12 kHz to 20MHzMax.180160140125110

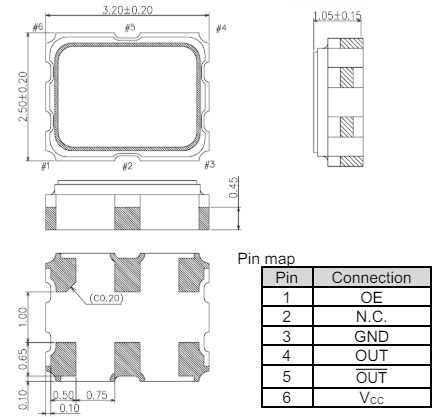

External dimensions



(Unit: mm)

OE pin = HIGH : Specified frequency output.
OE pin = LOW : Output is high impedance.


Footprint




(Unit: mm)


In order to achieve optimum jitter performance, it is recommended that the capacitor (0.1 μF + 10 μF)
between Vcc and GND pin should be placed as close to the Vcc pin as possible.
