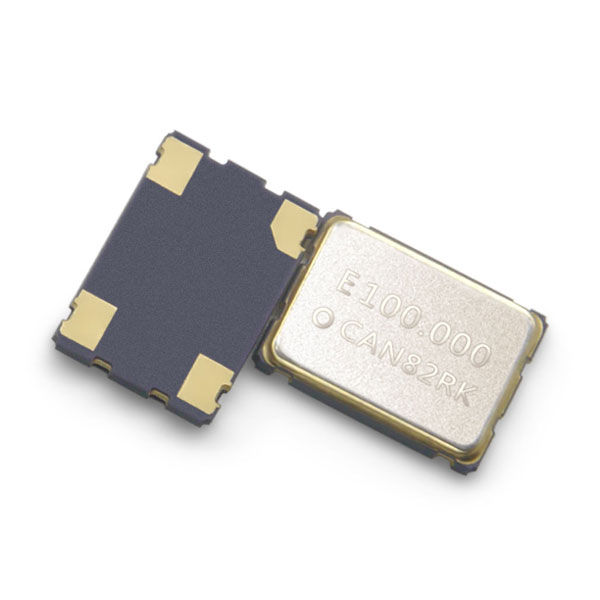

SG7050CBN
- Brand： EPSON
- Size/Package： 7.0 x 5.0 x 1.3mm
- Parameter： 80-170MHz
- Supply Voltage： 1.6-3.63V
- Output： CMOS
- Freq Tolerance： ±50ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 7050
- Parameters
- Brand： EPSON
- Size/Package： 7.0 x 5.0 x 1.3mm
- Parameter： 80-170MHz
- Supply Voltage： 1.6-3.63V
- Output： CMOS
- Freq Tolerance： ±50ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 7050
Specifications
| Item | Symbol | SG7050CBN | Conditions / Remarks |
|---|---|---|---|
| Output frequency range | f0 | 80MHz to 170MHz | Please contact us about available frequencies. |
| Supply voltage | Vcc | H: 1.6 V to 3.6 V | |
| Storage temperature | T_stg | -40°C to +125°C | Storage as single product |
| Operating temperature | T_use | B: -20 °C to +70 °C | |
| G: -40 °C to +85 °C | |||
| Frequency tolerance | f_tol | J: ±50 × 10-6 | |
| Current consumption | Icc | 11 mA Max. | No load condition Maximum frequency. |
| Disable current | I_dis | - | OE=GND |
| Symmetry | SYM | 45 % to 55 % | 50% Vcc level, L_CMOS ≦ 50 pF |
| Output voltage | VOH | Vcc- 0.4V Min. | |
| VOL | 0.4V Max. | ||
| Output load condition(CMOS) | L_CMOS | 15 pF Max. | |
| Input voltage | VIH | 80% Vcc Min. | OE terminal |
| VIL | 20% Vcc Min. | ||
| Rise time/ Fall time | tr / tf | 3ns Max. | 20 % VCC ~ 80 % Vcc level, L_CMOS ≦50 pF |
| Start-up time | t_str | 5ms Max. | t=0 at 90 % VCC ,+85°C |
| Frequency aging | f_aging | ±5 × 10-6 / year Max. | +25°C, First year. |
External dimensions
(Unit: mm)

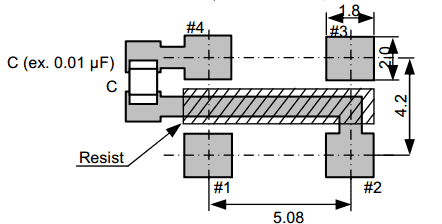

Footprint
(Unit: mm)
