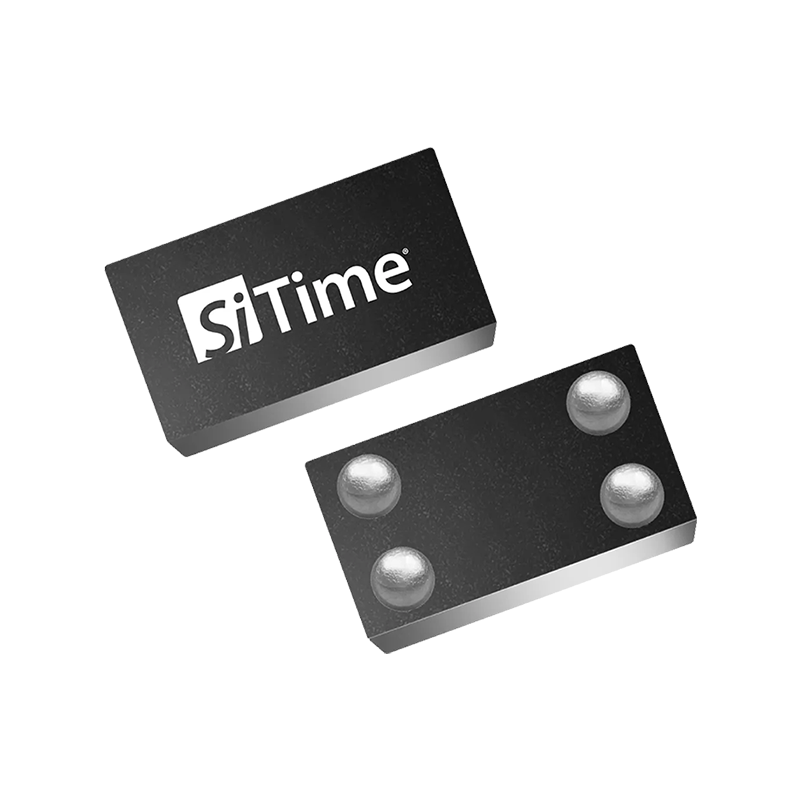

SIT1534

Product Overview

The SiT1534 is a programmable low-frequency MEMS oscillator covering 1 Hz to 32.768 kHz. Its 2.0×1.2 mm SMD package, 1.2–3.63 V supply and load-capacitor-free design make it a plug-and-play, low-power clock solution for battery-powered devices, mobile phones, sport cameras and PPS applications.

Key Advantages

• Ultra-small size, ultra-low power.
• Frequency range: 1 Hz – 32.768 kHz (factory programmable).
• Compact 4-pin package (2.0 × 1.2 mm) with LVCMOS output.
• 1.2–3.63 V supply and -55~+85°C operating range; frequency stability 75/100/150 ppm.
• YQM ELECTRONICS supplies SIT1534 with fast samples, competitive pricing and FAE support. YQM is an authorized SiTime distributor.

Technical Specifications

Applications

• Mobile phones
• Sport video cameras
• Tablets

FAQ

Q: What frequency range does SIT1534 support?

A: 1 Hz – 32.768 kHz.

Q: What package and supply voltage does SIT1534 use?

A: 4-pin (2.0 × 1.2 mm), 1.2–3.63 V.

Q: What is the frequency stability and operating temperature?

A: 75/100/150 ppm / -55~+85°C.

Q: Where can I get SIT1534 samples?

A: YQM ELECTRONICS supplies SIT1534 with fast samples, competitive pricing and FAE support. YQM is an authorized SiTime distributor.
