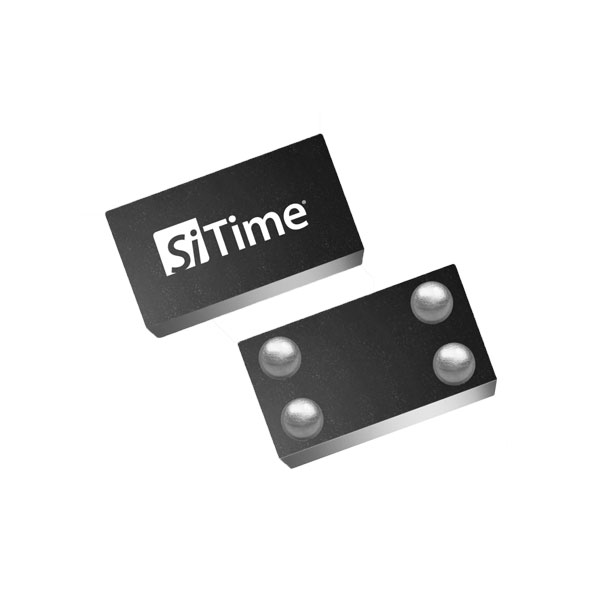

SIT1568

SiTime's TempFlat MEMS™ technology enables the first 32 kHz ±5 ppm Super-TCXO in a 1.2 mm2 chip-scale package. The SiT1568 is factory-calibrated over multiple temperature points to guarantee ±5 ppm all-inclusive frequency stability.  And unlike any other TCXO on the market, this ultra-small TCXO includes a one-time, in-system auto-calibration feature that cancels out post-assembly board stressors such as overmold and underfill.  The result is a 32 kHz TCXO that maintains ±5 ppm all-inclusive stability in a tiny 1.2 mm2 footprint - ideal for wearables, modules, and tiny IoT applications.

Specifications

Features

±5 ppm all-inclusive stability after overmold/underfill

• Maintains ±5 ppm stability after overmold/underfill for improved local timekeeping and improved system power


Smallest footprint in chip-scale (CSP): 1.5 x 0.8 mm

• Saves board space


In-system auto-calibration enables overmold

• Eliminates (cancels) board related stressors after assembly


Drives multiple loads

• Eliminates multiple discrete XTALs + load caps


Internal VDD supply filtering

• Eliminates external VDD bypass capacitor to maintain ultra-small footprint


Low jitter 4 nsRMS max integrated phase jitter (IPJ)

• Suitable for audio applications, eliminates discrete MHz XTAL
