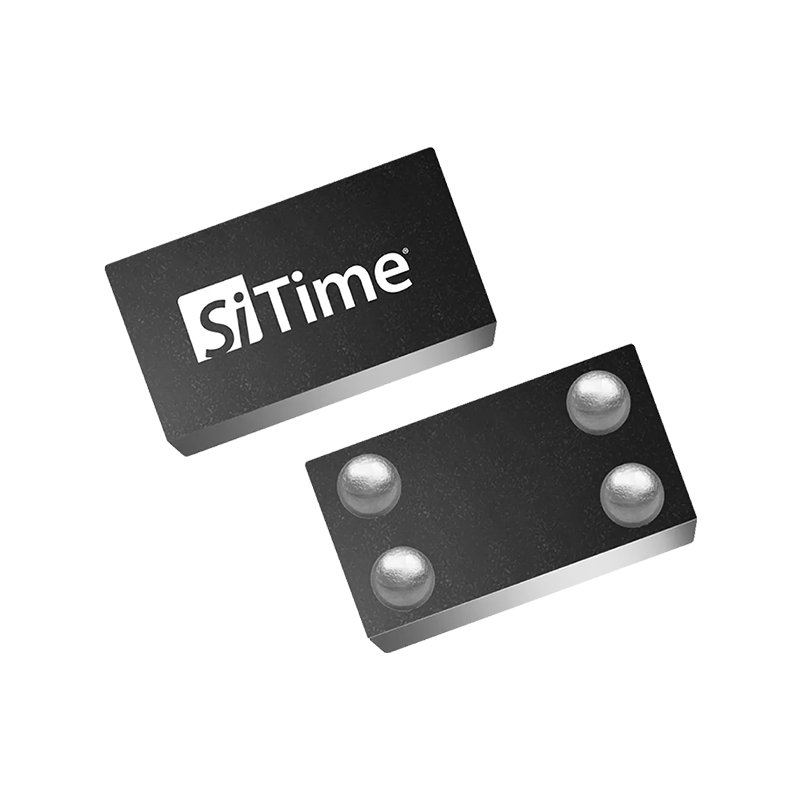

SIT1569
Ultra-small size, ultra-low power.
- Brand： SITIME
- Size/Package： 1.5 x 0.8 mm
- Parameter： 1Hz-462.5kHz
- Supply Voltage： 1.62-3.63V
- Output： LVCMOS
- Freq Tolerance： ±50ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 1508
- Applications： Smart stylus, Wearable biometric sensing, Portable medical devices
- Parameters
- Brand： SITIME
- Size/Package： 1.5 x 0.8 mm
- Parameter： 1Hz-462.5kHz
- Supply Voltage： 1.62-3.63V
- Output： LVCMOS
- Freq Tolerance： ±50ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 1508
- Applications： Smart stylus, Wearable biometric sensing, Portable medical devices
SIT1569 | Ultra-Low-Jitter MHz Oscillator
Product Overview
The SiT1569 is an ultra-small, ultra-low-power MEMS oscillator covering 1 Hz to 462.5 kHz. Its 1.5×0.8 mm CSP package and 3.3 µA typical current at 100 kHz help IoT nodes, sensors and MCUs achieve long battery life, with ±50 ppm stability and 1.62–3.63 V supply.
Key Advantages
- Ultra-small size, ultra-low power.
- Frequency range: 1 Hz – 462.5 kHz (factory programmable).
- Compact 4-pin CSP package (1.5 × 0.8 mm) with LVCMOS output.
- 1.62–3.63 V supply and -40~+85°C operating range; frequency stability ±50 ppm.
- YQM ELECTRONICS supplies SIT1569 with fast samples, competitive pricing and FAE support. YQM is an authorized SiTime distributor.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Ultra-Low-Jitter MHz Oscillator |
| Brand | SiTime |
| Frequency | 1 Hz – 462.5 kHz |
| Supply Voltage | 1.62–3.63 V |
| Output | LVCMOS |
| Frequency Stability | ±50 ppm |
| Package | 4-pin CSP |
| Size | 1.5 × 0.8 mm |
| Operating Temperature | -40~+85°C |
| Programmability | Factory programmable |
| Applications | Smart stylus, Wearable biometric sensing, Portable medical devices |
Applications
- Smart stylus
- Wearable biometric sensing
- Portable medical devices
FAQ
Q: What frequency range does SIT1569 support?
A: 1 Hz – 462.5 kHz.
Q: What package and supply voltage does SIT1569 use?
A: 4-pin CSP (1.5 × 0.8 mm), 1.62–3.63 V.
Q: What is the frequency stability and operating temperature?
A: ±50 ppm / -40~+85°C.
Q: Where can I get SIT1569 samples?
A: YQM ELECTRONICS supplies SIT1569 with fast samples, competitive pricing and FAE support. YQM is an authorized SiTime distributor.
Contact YQM ELECTRONICS for fast samples, competitive pricing and FAE support.
