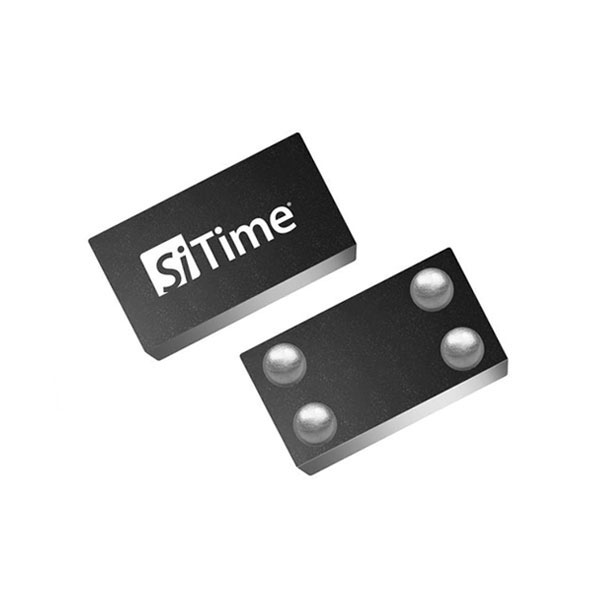

SIT1573
- Brand： SITIME
- Size/Package： 1.5 x 0.8 x 0.55 mm
- Parameter： 32.768KHz
- Supply Voltage： 1.62-3.63V
- Output： LVCMOS
- Freq Tolerance： ±100ppm
- Operating Temp： -40°C~+85°C
- Package： 4P 1508
- Applications： Health and wellness monitors
- Parameters
- Brand： SITIME
- Size/Package： 1.5 x 0.8 x 0.55 mm
- Parameter： 32.768KHz
- Supply Voltage： 1.62-3.63V
- Output： LVCMOS
- Freq Tolerance： ±100ppm
- Operating Temp： -40°C~+85°C
- Package： 4P 1508
- Applications： Health and wellness monitors
Built on SiTime's TempFlat MEMS™ technology, this 32-kHz ±100-ppm (al-inclusive frequency stability) oscillator comes in an ultra-small 1.2mm2 chip-scale package. Typical supply current is only 4.5 μA. This device can drive 2 to 3 loads and replace multiple quartz crystals, reducing the BOM and board space. And unlike crystals, it doesn’t require external bypass capacitors.
| Frequency | 32.768 kHz |
| Frequency Stability (ppm) | ±100 |
| Operating Temperature Range (°C) | -40 to +85 |
| Package Type (mm²) | 1.5x0.8 |
| Oscillator Type | 32-kHz XO |
| Voltage Supply (V) | 1.62 to 3.63 |
| Features | Ultra-low power |
±100 ppm all-inclusive frequency stability
- Improved local timekeeping and improved system power with less dependency on network timekeeping updates
- Improved system error budget
Smallest footprint in chip-scale package (CSP): 1.5 x 0.8 mm
- Saves board space
Ultra-low power: 4.5 µA (typ.)
- Maximizes battery life
Low jitter: 4 ns RMS integrated phase jitter (IPJ)
- Suitable for audio applications
Internal VDD supply filtering
- Eliminates external VDD bypass capacitor to maintain ultra-small footprint
Drives multiple loads
- Eliminates multiple discrete XTALs and load caps
