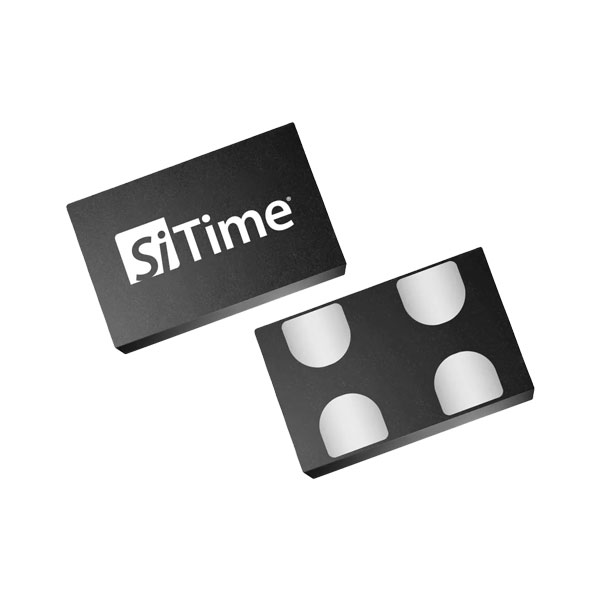

SIT1602

The SiT1602B is a low power, fixed-frequency oscillator. It provides the perfect combination of low power consumption, excellent stability, small size, fast startup, and short lead time for a wide range of applications. Continuous 1.8 V to 3.3 V supply voltage enables inventory consolidation and qualification of a single device configuration.

Configurable feature sets

• 52 standard frequencies

• Stability from ±20 ppm to ±50 ppm

• Industrial or extended commercial temp.

• 1.8 V, 2.5 V to 3.3 V, or 1.8 V to 3.3 V supply voltage:

• Customize specification for optimal system performance

• Use same base device for many designs reducing qualification needs;



Small 2016 & 2520 packages for all frequencies, voltages, and stabilities

• Save more board space without compromising performance and availability;


Low power consumption

• 1.2 µA typical standby current (1.8 V)

• 3.6 mA typical active current (1.8 V):

• Extends battery life in portable applications

• Reduces power consumption for greener systems;


FlexEdge™ configurable drive strength

• Slower rise/fall time that minimizes EMI from the oscillator

• Saves cost by driving multiple loads and eliminate additional timing components;


Ultra-fast lead time (4 to 6 weeks)

• Reduce inventory overhead

• Mitigate shortage risks
