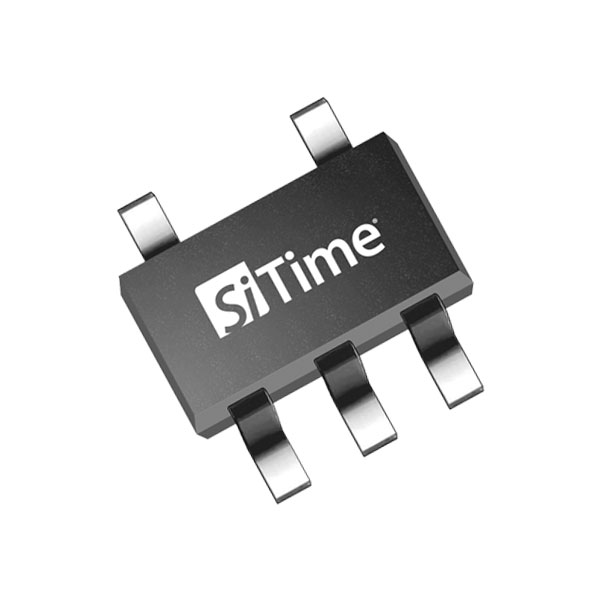

SIT2021
- Brand： SITIME
- Size/Package： 2.9 x 2.8 mm
- Parameter： 119-137MHz
- Voltage： 1.8,2.5-3.3V
- Output： LVCMOS
- Freq Tolerance： ±20,±25,±50ppm
- Operating Temp： -55~+125℃
- Package： SOT23-5
- Applications： Oil Exploration Drilling,Power Amplifiers
- Parameters
- Brand： SITIME
- Size/Package： 2.9 x 2.8 mm
- Parameter： 119-137MHz
- Voltage： 1.8,2.5-3.3V
- Output： LVCMOS
- Freq Tolerance： ±20,±25,±50ppm
- Operating Temp： -55~+125℃
- Package： SOT23-5
- Applications： Oil Exploration Drilling,Power Amplifiers
The SiT2021B oscillator comes in a SOT23 package for the best board-level solder joint reliability and low-cost, optical-ONLY board-level inspection. This device features a wide frequency range, excellent stability, and the shortest lead time for industrial, medical, automotive, avionics, and other high-temperature applications. This device also features the industry's best 0.1 ppb/g vibration sensitivity, 50,000 g shock and 70 g vibration resistance.
| Frequency | 119 to 137 MHz |
| Frequency Stability (ppm) | ±20 , ±25 , ±50 |
| Operating Temperature Range (°C) | -55 to +125 |
| Package Type (mm²) | SOT23 (2.9x2.8) |
| Oscillator Type | XO-SE |
| Phase Jitter (rms) | 1.3 ps |
| FlexEdgeTM Rise/Fall Time | Yes |
| Voltage Supply (V) | 1.8 , 2.5 to 3.3 |
| Features | Field programmable , Military temperature -55 to 125°C , SOT23-5 |
Unique combination of
- 119 to 137 MHz
- ±20 ppm
- -55 °C to 125 °C operating temperature:
- Best-in-class stability over extreme temperature range for outdoor applications
0.1 ppb/g low g-sensitivity
- No degradation of performance in harsh operating environments
70 g vibration and 50,000 g shock
- Indestructible
FlexEdge™ rise/fall time
- Optimize EMI to reduce interference to other subsystems
SOT23-5 package
- Best board-level solder joint reliability
- Easy, low-cost, optical-only, board-level inspection of solder joints
Ultra-fast lead time (4 to 6 weeks)
- Reduce inventory overhead
- Mitigate shortage risks
