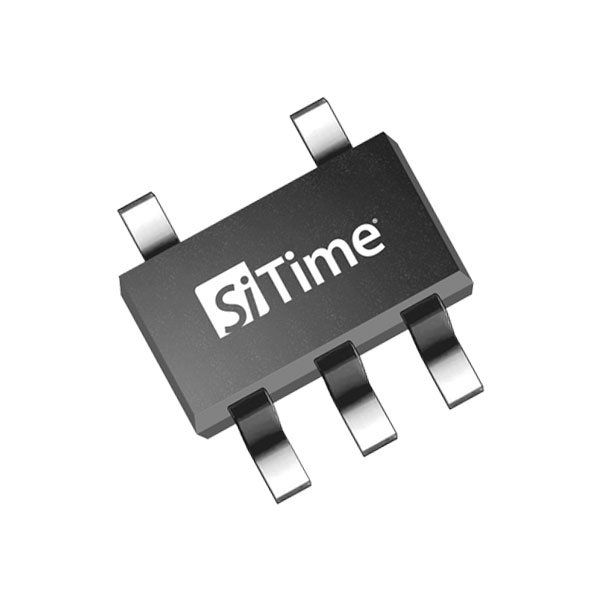

SIT2045
- Brand： SITIME
- Size/Package： 2.9 x 2.8 mm
- Parameter： 115-137MHz
- Supply Voltage： 1.8,2.5-3.3V
- Output： LVCMOS
- Freq Tolerance： ±20,±25,±50ppm
- Operating Temp： -55~+125℃
- Package： SOT23-5
- Applications： Airborne Communications
- Parameters
- Brand： SITIME
- Size/Package： 2.9 x 2.8 mm
- Parameter： 115-137MHz
- Supply Voltage： 1.8,2.5-3.3V
- Output： LVCMOS
- Freq Tolerance： ±20,±25,±50ppm
- Operating Temp： -55~+125℃
- Package： SOT23-5
- Applications： Airborne Communications
The Endura™ SiT2045 is the most reliable and the highest quality SOT23 oscillator for high-reliability aerospace and defense applications. This device delivers the perfect combination of high-frequency range (up to 137 MHz), excellent stability (±20 ppm), and wide temperature range (-55 to 125°C). Engineered for harsh environments, this oscillator features ultra-low 0.1 ppb/g acceleration sensitivity, 10,000g shock, and 70g vibration resistance. The small SOT23-5 package offers the best board-level solder joint reliability and easy optical-only, board-level inspection of solder joints.
The MEMS-based Endura SiT2045 is 100% screened through the SiTime Endura™ process flow to provide high reliability.
| Frequency | 115 to 137 MHz |
| Frequency Stability (ppm) | ±20, ±25, ±50 |
| Operating Temperature Range (°C) | -40 to +105, -40 to +125, -55 to +125 |
| Package Type (mm²) | SOT23 (2.9x2.8) |
| Oscillator Type | XO-SE |
| Phase Jitter (rms) | 1.3 ps |
| FlexEdgeTM Rise/Fall Time | Yes |
| Voltage Supply (V) | 1.8, 2.5 to 3.3 |
| Features | Ultra-low acceleration sensitivity, MIL-STD-55310, MIL-PRF-883, AEC-Q100, SOT23-5 |
Unique combination of
- Up to 137 MHz
- ±25 ppm
- -55 to +125°C
- Best-in-class stability over extreme temperature range ideal for high-rel applications
Low 0.1 ppb/g low g-sensitivity
- No degradation of performance in harsh environments
70g vibration and 10,000g shock
- Virtually indestructible
Configurable rise/fall time
- Optimize EMI to reduce interference to any subsystems
SOT23-5 package
- Best board-level solder joint reliability
- Easy, optical-only, board-level inspection of solder joints
Ultra-fast lead time (4 to 6 weeks)
- Reduce inventory overhead
- Mitigate shortage risks
