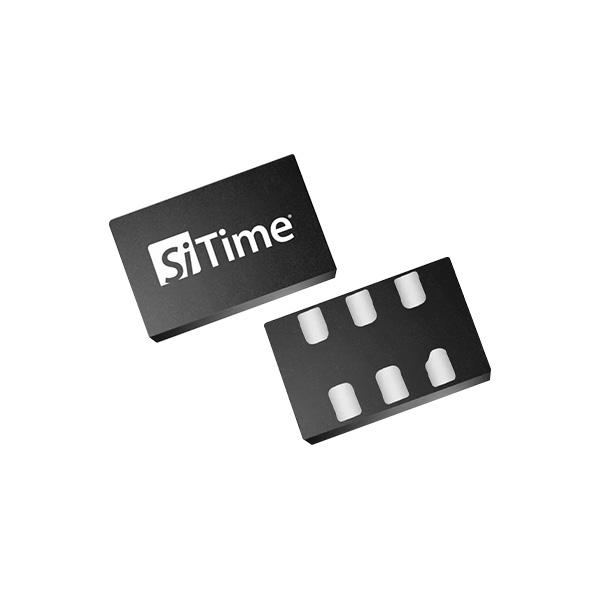

SIT3343

The Endura™ SiT3343 is a programmable differential VCXO (voltage controlled oscillator), engineered for harsh environments and ideal for high-reliability aerospace and defense applications. This device supports LVPECL, LVDS and HCSL output types with 27 exceptionally linear APR (absolute pull range) options up to ±3145 ppm. The SiT3343 delivers exceptional performance of 0.21 ps jitter (typ.), ±15 ppm, and 0.1% pull range linearity, and is designed to maintain these specs in the presence of common environmental stressors, such as shock, vibration, power supply noise, and EMI.

The MEMS-based Endura SiT3343 is 100% screened through the SiTime Endura™ process flow to provide high reliability.

The SiT3343 can be factory-programmed to any combination of frequency, stability, voltage, and pull range. This programmability enables designers to optimize clock configuration while eliminating the long lead time and customization costs associated with custom quartz VCXOs.

Rugged performance under airflow, fast temp. ramp

• 0.21 ps jitter (typ.)

• ±15 ppm

• 0.1% pull range linearity: Ensures best system performance in hostile environments


Low acceleration sensitivity

• As low as 0.1 ppb/g


0.05 ps/mV power supply noise rejection (PSNR)

• Simplify power supply design


3.0 x 2.5 mm package

• Enables small form-factor system with stringent jitter requirement


Flexible programmable features

• 220 to 725 MHz

• 2.25 to 3.63 V

• ±25 to ±3200 ppm pull range

• LVPECL, LVDS, HCSL: Customize oscillator specifications for optimal system performance


Superior reliability

• 1 billion hours MTBF (mean time between failure)

• Lifetime warranty: Reduces field failures due to clock components and the repair costs
