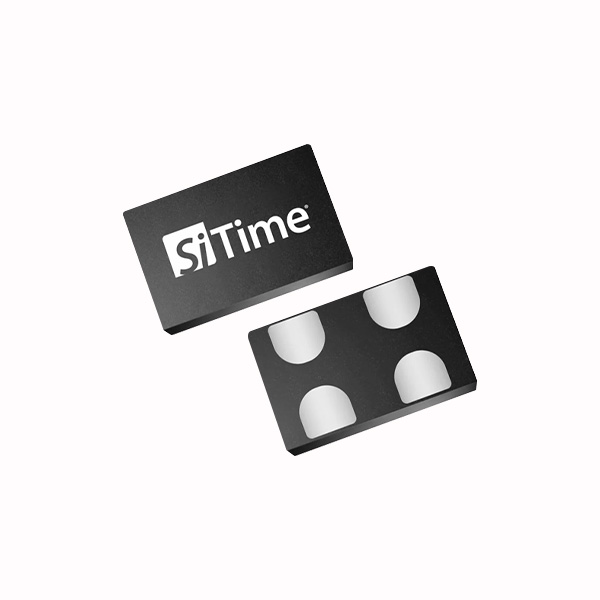

SIT3907

The SiT3907 is a highly flexible, high performance DCXO with LVCMOS/LVTTL compatible output. This programmable device supports any frequency, 1-220 MHz, along with any combination of voltage (1.8 V; 2.5 V to 3.3 V), pull range (±25 ppm to ±200 ppm) and package (3225, 5032, 7050). It enables frequency tuning via a unique one-wire interface, eliminating frequency drift that is caused by board noise and simplifying PLL and clock synchronization design. It comes in 3 industry-standard package sizes, 4-pin 3.2x2.5 mm, and 6-pin 5.0x3.2 or 7.0x5.0 mm.

• Digitally controlled 1 ppb frequency pull resolution

• Frequency from 1 MHz to 220 MHz

• Supply voltage of 1.8 V; 2.5 V to 3.3 V

• Frequency stability from ±10 ppm to ±50 ppm

• Pull range from ±25 ppm to ±1600 ppm:

• Eliminating a need for external DAC

• Customized specification for optimal system performance

• Easy availability of any device specifications within the operating range


One-wire digital frequency tuning

• Simpler loop control in software controlled system PLL

• More consistent PLL bandwidth over operating range

• Faster calibration and lock time

• Reduction of modulation harmonics;


Three industry-standard packages

• Minor modification to existing design using VCXO to adopt the DCXO;


4 to 6 weeks lead time

• Reduce inventory overhead

• Mitigate shortage risks
