SIT5503

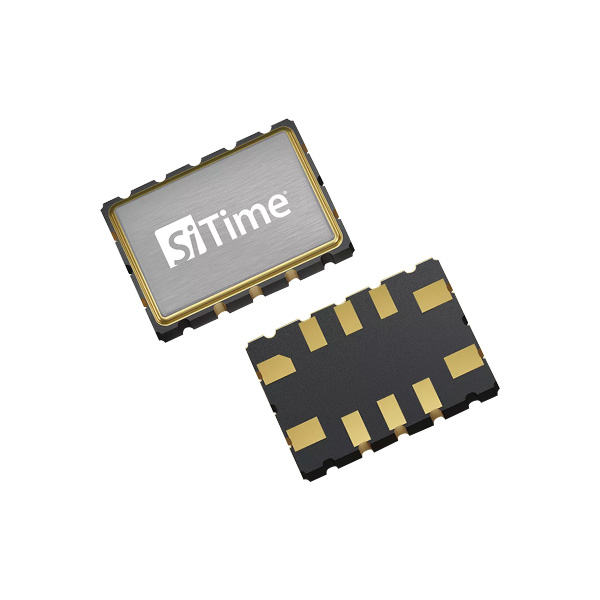

The Elite X™ SiT5503 is a ±5 ppb Stratum 3E precision oscillator. Engineered for exceptional dynamic performance, this MEMS-based Super-TCXO is ideal for replacing larger and less robust quartz OCXOs in edge networks. The SiT5503 adds up to 4 hours of holdover capability to the Elite X product line in addition to being  is 4x smaller, 4x lower power, and 30x more reliable than comparable OCXOs. By leveraging SiTime’s unique DualMEMS® and TurboCompensation® temperature sensing technology, the SiT5503 delivers the most stable timing in the presence of environmental stressors – airflow, temperature perturbation, vibration, shock, and electromagnetic interference (EMI).

The SiT5503 can be factory-programmed to any combination of frequency, voltage, and pull range. This programmability enables designers to optimize the clock configuration while eliminating the long lead time and customization costs associated with quartz TCXOs where each frequency is custom-built.

Exceptional dynamic stability under airflow, fast temp. ramp

• ±5 ppb over-temp. stability from -40 to 95°C

• ±0.3 ppb/°C frequency slope (ΔF/ΔT) -- Ensures system-level quality of service for telecom and networking equipment in hostile environments

• ±0.5 ppb/day aging

• 2e-11 ADEV at 10 second averaging time


4x lower power and 4x smaller for compact edge devices

• 110 mW typical power consumption (2.5V)

• Robust 7.0 mm x 5.0 mm package


20x better phase noise under vibration

• Minimizes call and/or link drops in high-vibration environments


No activity dips or microjumps

• Eliminates any need for costly screening or burn-in tests


0.2 ps/mV power supply noise rejection (PSNR)

• Reduces BOM by eliminating a dedicated LDO for TCXO


LVCMOS or clipped sinewave output

• Optimizes for best balance between EMI and jitter


Rich programmable features

• Any frequency between 1 to 60 MHz

• 2.25 to 3.63 V

• Large pull range from ±6.25 to ±3200 ppm -- Customize TCXO specifications for optimal system performance


Digital frequency tuning through I2C

• Eliminate frequency shift caused by board noise


Superior reliability – reduces field failures and repair costs due to clock components

• 1 billion hours MTBF

• Lifetime warranty
