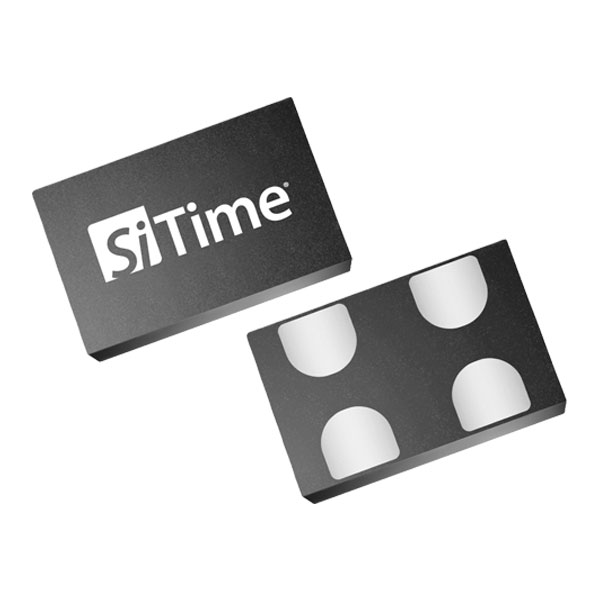

SIT8919
- Brand： SITIME
- Size/Package： 4P SMD Customized
- Parameter： 115-137MHz
- Supply Voltage： 1.8V,2.5-3.3V
- Output： LVCMOS,LVTTL
- Freq Tolerance： ±20,±25,±50ppm
- Operating Temp： -40℃~+125℃
- Applications： Industrial Sensors, Medical Video CAM
- Parameters
- Brand： SITIME
- Size/Package： 4P SMD Customized
- Parameter： 115-137MHz
- Supply Voltage： 1.8V,2.5-3.3V
- Output： LVCMOS,LVTTL
- Freq Tolerance： ±20,±25,±50ppm
- Operating Temp： -40℃~+125℃
- Applications： Industrial Sensors, Medical Video CAM
The SiT8919B extends frequency support up to 137 MHz while maintaining excellent stability (±20 ppm) at high temperatures (up to 125 °C) in the smallest 2.0 x 1.6 mmxmm package, a combination that is not readily available from quartz. This device also features the industry's best shock and vibration resistance.
The SiT8919 comes in industry-standard packages and footprints, and therefore replaces quartz without any design changes.
Specifications
Frequency | 115 to 137 MHz |
Frequency Stability (ppm) | ±20, ±25, ±50 |
Operating Temperature Range (°C) | -40 to +105, -40 to +125 |
Package Type (mm²) | 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0 |
Oscillator Type | XO-SE |
Phase Jitter (rms) | 1.3 ps |
FlexEdgeTM Rise/Fall Time | Yes |
Voltage Supply (V) | 1.8, 2.5 to 3.3 |
Features | Field programmable, High temperature 125°C |
Features
Unique combination of
- High frequency (115 to 137 MHz)
- ±20 ppm
- automotive temp. (-40 to 125 °C)
- Smallest package (2.0 x 1.6 mmxmm)
- Better timing margin ideal for space-constrained, outdoor and high-temp. operating environment
0.1 ppb/g low g-sensitivity
Improved system performance under vibration
Simpler carrier drop-test compliance
70 g vibration and 50,000 g shock
- Best system reliability in harsh environments
FlexEdge™ drive strength
- Slower rise/fall time that minimizes EMI from the oscillator
- Lower cost by driving multiple loads and eliminate additional timing components
5 industry-standard packages
- 100% drop-in replacement of quartz XO
