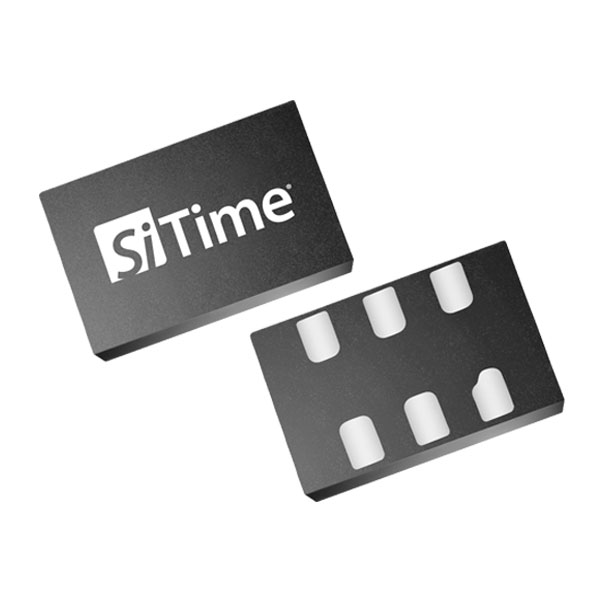

SIT9122
- Brand： SITIME
- Size/Package： 6P SMD Customized
- Parameter： 220-625MHz
- Supply Voltage： 2.5-3.63V
- Output： LVPECL,LVDS
- Freq Tolerance： ±10, ±20, ±25, ±50ppm
- Operating Temp： -40℃~+85℃
- Parameters
- Brand： SITIME
- Size/Package： 6P SMD Customized
- Parameter： 220-625MHz
- Supply Voltage： 2.5-3.63V
- Output： LVPECL,LVDS
- Freq Tolerance： ±10, ±20, ±25, ±50ppm
- Operating Temp： -40℃~+85℃
Specifications
| Frequency Range | 220 to 625 MHz |
| Frequency Stability (ppm) | ±10, ±20, ±25, ±50 |
| Phase Jitter (rms) | 0.6 ps |
| Output Type | LVPECL, LVDS |
| Operating Temperature Range (°C) | -20 to +70, -40 to +85 |
| Voltage Supply (V) | 2.5, 3.3, 2.25 to 3.63 |
| Package Type (mm²) | 3.2x2.5, 5.0x3.2, 7.0x5.0 |
| Features | Field programmable |
| Availability | Production |
Features
0.6 ps (typ.) integrated RMS phase jitter (12 kHz to 20 MHz)
- Excellent jitter margin for the most stringent applications such as 1 to 10GbE
Excellent frequency stability, as low as ±10 ppm
- Better timing margin that enhances system stability and robustness
- Extensive programmability
- Fixed frequency between 25 to 212.5 MHz
- LVPECL and LVDS output signaling types
- Supply voltage of 2.5 V and 3.3 V
- Frequency stability from ±10 ppm and ±50 ppm
- Customized specifications for optimal system performance
- Cost-effective
- Easy availability of any device specification within the operating range
Three industry-standard packages
- 100% drop-in replacement for quartz, SAW and overtone oscillators without any design changes
