SIT9347

The Endura™ SiT9347 ultra-low-jitter differential oscillator is engineered for harsh environments and is ideal for high-reliability aerospace and defense applications. This device supports any frequency from 220.000001 to 725 MHz in 1 Hz increments and delivers exceptional dynamic performance of 0.23 ps jitter (typ.) and ±10 ppm in the presence of common environmental stressors, such as shock, vibration, power supply noise, EMI, and board bending.

The SiT9347 is 100% screened through the SiTime Endura™ process flow to provide high reliability.

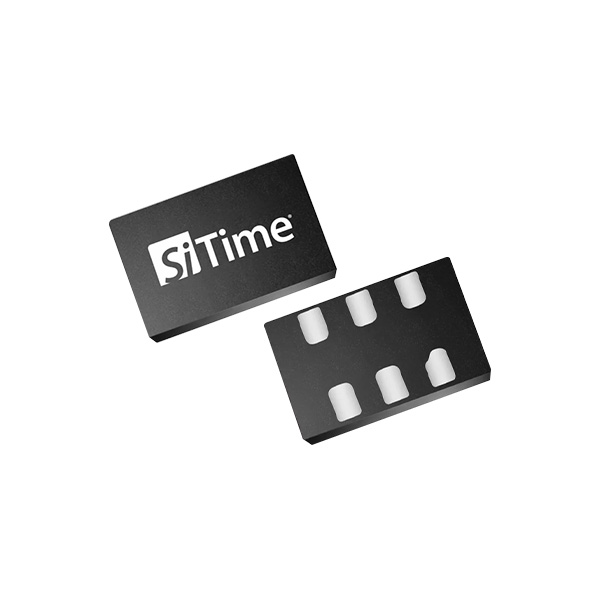

The device is available in s small 3.2 x 2.5 mm differential package in addition to a 7.0 x 5.0 mm package and supports all popular output signaling types including LVPECL, LVDS, and HCSL in combination with any voltage between 2.5 to 3.3V.

Rugged performance under airflow, fast temp. ramp

• 0.23 ps jitter (typ.)

• ±10 ppm: Ensures best system performance in hostile environments


Low acceleration sensitivity

• 0.1 ppb/g


20x better vibration sensitivity

• Minimizes packet loss in high-vibration environments


0.05 ps/mV power supply noise rejection (PSNR)

• Simplify power supply design


3.2 x 2.5 mm package

• Enables small form-factor system with stringent jitter requirement


Flexible programmable features

• 1 to 220 MHz

• 2.25 to 3.63 V

• LVPECL, LVDS, HCSL: Customized oscillator specifications for optimal system performance


Superior reliability

• 1 billion hours MTBF

• Lifetime warranty: Reduces field failures due to clock components and associated repair costs
