SIT9365

The SiT9365 low-jitter differential oscillator supports 32 commonly used output frequencies for networking, storage, server, and FPGA clocking. Based on SiTime's unique Elite Platform™, this device delivers exceptional dynamic performance of 0.23 ps jitter (typ.) and stable timing in the presence of common environmental hazards, such as shock, vibration, power supply noise, and EMI.

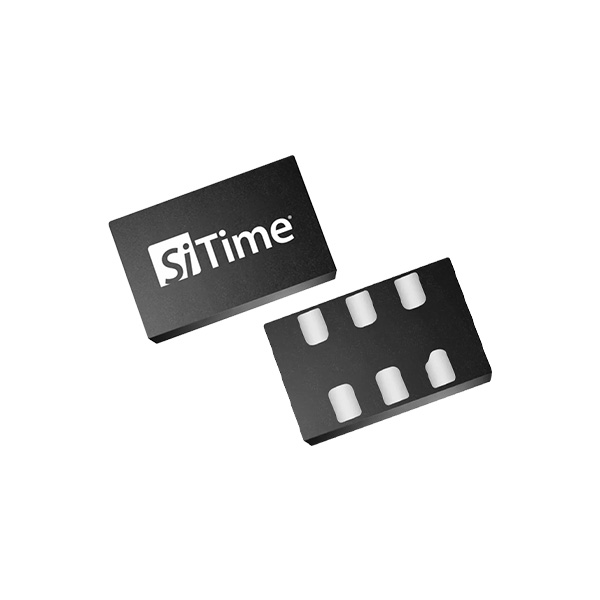

The SiT9365 is available in the smallest 3.2 x 2.5 mm differential package in addition to the 7.0 x 5.0 mm package. This device supports all popular output signaling types including LVPECL, LVDS, and HCSL in combination with any voltage between 2.5 to 3.3 V.

Exceptional dynamic performance in real-life operating conditions

• 0.23 ps jitter (typ.)

• ±10 ppm

• Better system performance in hostile environments


20x better vibration sensitivity

• Minimizes packet loss in high-vibration environments


0.05 ps/mV power supply noise rejection (PSNR)

• Simplify power supply design


3.2 x 2.5 mm package:

• Enables small form-factor system with stringent jitter requirement


Flexible programmable features

• 32 common frequencies

• 2.25 to 3.63 V

• LVPECL, LVDS, HCSL: Customized oscillator specifications for optimal system performance


Superior reliability

• 1 billion hours MTBF

• Lifetime warranty

• Reduces field failures due to clock components and associated repair costs
