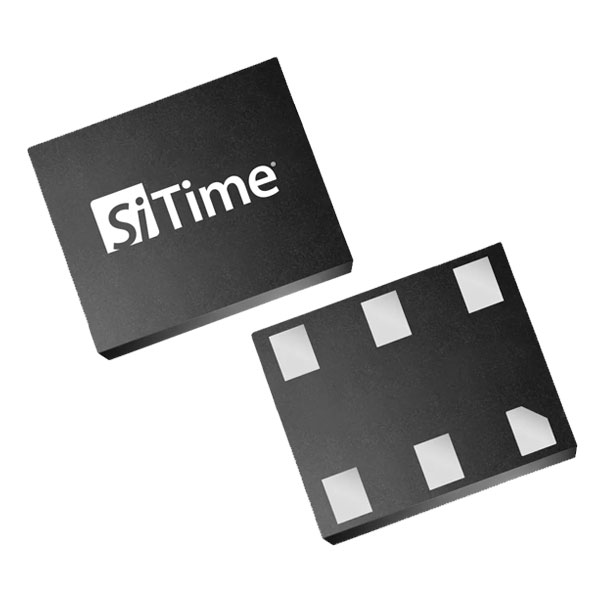

SIT9501

The SiT9501 is optimized for communications applications requiring ultra-low jitter and low power, and is available in the industry’s smallest differential package.

This differential oscillator supports 14 commonly used networking frequencies from 25 MHz to 644.53125 MHz. It features 70 fs RMS jitter (typ.), excellent immunity to power supply noise and environmental hazards, industry-standard package sizes down to 2.0 x 1.6 mm, low-power options, and wide temperature support up to 105°C.

The SiT9501 offers popular output drivers for LVPECL, LVDS, HCSL and low-power HCSL with integrated termination resistors. It also features a unique FlexSwing™ driver that performs like LVPECL but with independent control of VOH and VOL levels to simplify interfacing with chipsets having non-standard input-voltage requirements. The SiT9501 accepts power-supply voltages down to 1.8V for additional power savings.

Specifications

Features

Exceptional dynamic performance in real-life operating conditions

• 70 fs RMS phase jitter (typ.)

• ±20 ppm stability

• Excellent system performance under environmental stress



20x better vibration sensitivity

• Minimizes packet loss in high-vibration environments


0.01 ps/mV power supply induced jitter sensitivity

• Simplify power supply design


2.0 x 1.6 mm package

• Enables small form-factor system with stringent jitter requirement


Flexible programmable features

• 14 common frequencies

• 1.8 to 3.63 V

• LVPECL, LVDS, HCSL, Low-power HCSL, FlexSwing: Flexible and low power, output drivers and terminations


Superior reliability

• 1 billion hours MTBF

• Lifetime warranty

• Reduces field failures due to clock components and associated repair costs
