SMAJ6.0CA
Excellent clamping, low capacitance, fast response
- Brand： YQM
- Size/Package： SMA/DO-214AC
- Parameter： 6.0V
- IR@VR： 800uA
- Operating Temp： -55-150℃
- Direction： Bi‑directional
- VBR@IT Min： 6.67V
- VC@IPP Max： 10.3V
- IPP： 38.8A
- Applications： I/O Interface, AC/DC Power Supply, Low-Frequency Signal Transmission Line
- Parameters
- Brand： YQM
- Size/Package： SMA/DO-214AC
- Parameter： 6.0V
- IR@VR： 800uA
- Operating Temp： -55-150℃
- Direction： Bi‑directional
- VBR@IT Min： 6.67V
- VC@IPP Max： 10.3V
- IPP： 38.8A
- Applications： I/O Interface, AC/DC Power Supply, Low-Frequency Signal Transmission Line
SMAJ6.0CA | Discrete Device
Product Introduction

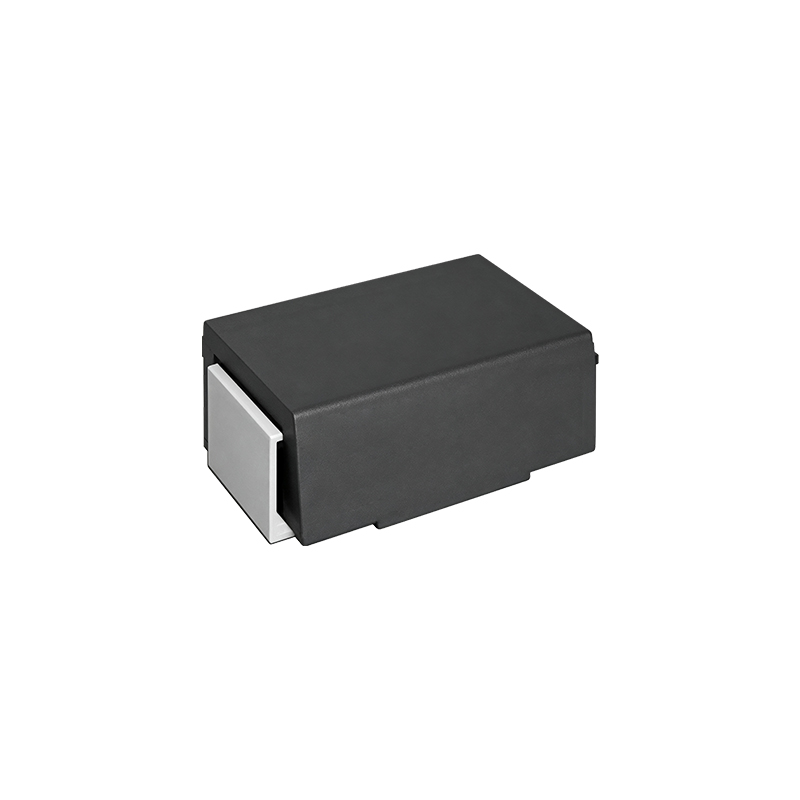

SMAJ6.0CA is a 400 W bidirectional surface-mount transient voltage suppressor (TVS) diode of the SMAJ series. It adopts the standard SMA (DO-214AC) surface-mount package, designed to provide bidirectional surge and ESD protection for 6 V-rated circuits. It clamps positive and negative transient impulses without polarity concern, and is suitable for AC-signal and differential-signal circuits.
Core Advantages
- Excellent clamping capability;
- Low profile package and low inductance;
- 400 W Peak Pulse power capability at 10/1000 μs waveform;
- Fast response time: typically less than 1.0 ps from 0 V to VBR min;
Key Features
Alternative Products and Reasons
- Replacement:
- DIODES: SMAJ6.0CA;
- AOS: SMAJ6.0CA;
- ST: SMAJ6.0CA;
- Replacement Rationale: Pin-to-pin & parameter compatible; cost saving with no PCB modification.
Applications
charging port, wearable devices,
smart home modules,
audio-video signal ports;
industrial sensors,
actuators;
auxiliary power supplies for optical modules, broadband equipment;
