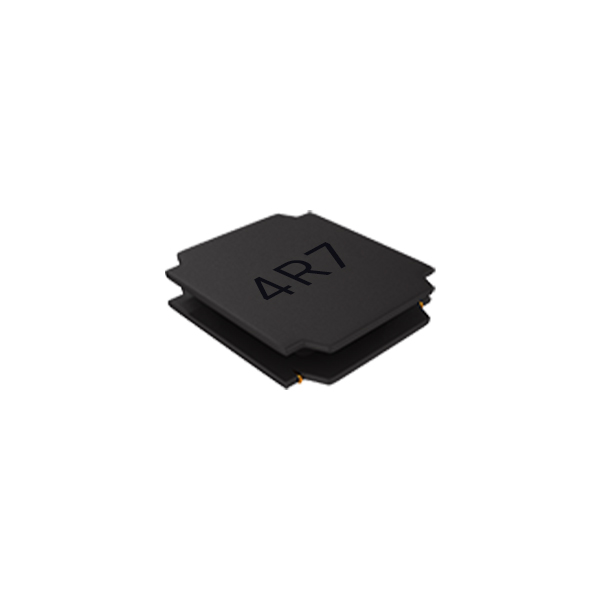

SPH252010H
The magnetic glue coating structure significantly reduces buzzing noise, lowers DC resistance by approximately 30% compared to the SWPA series, and supports higher current capacity.
- Brand： Sunlord
- Size/Package： 2.5 x 2.0 x 1.0 mm
- Parameter： 0.24 - 33μH
- Applications： Mobile phones / Set-top boxes / VR / Computers / Servers / Portable game consoles / Personal navigation systems / Multimedia devices
- Operating Temp： -40℃~+125℃
- Package： SMD
- Rated Current： 0.25 - 3.60A
- Parameters
- Brand： Sunlord
- Size/Package： 2.5 x 2.0 x 1.0 mm
- Parameter： 0.24 - 33μH
- Applications： Mobile phones / Set-top boxes / VR / Computers / Servers / Portable game consoles / Personal navigation systems / Multimedia devices
- Operating Temp： -40℃~+125℃
- Package： SMD
- Rated Current： 0.25 - 3.60A
SPH252010H | Wire Wound SMD Power Inductors (SPH)
Product Introduction
Sunlord SPH252010H is a wire-wound SMD power inductor from the SPH series in 252010 (2.5×2.0×1.0mm), using a magnetic-glue coated construction. Magnetically shielded with low DCR and high saturation current, it covers 0.24μH~33μH from -40°C~+125°C (including self-heating) for mobile, mobile-PC, wearable and industrial DC-DC converter circuits.
Core Advantages
- Wire Wound SMD Power Inductors (SPH): 252010 (2.5×2.0×1.0 mm), 0.24–33 μH — magnetic-glue coated shielded structure — low DCR, high Isat and low buzz noise.
- Low DCR, high current: DCR 0.028Ω~1.770Ω; saturation current up to 4.60A — high DC-bias performance in a 252010 body.
- Supply: YQM ELECTRONICS holds Sunlord stock with fast samples, datasheets and FAE support for volume programs.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Wire Wound SMD Power Inductor (SPH series) |
| Package Size | 252010 (2.5×2.0×1.0mm) |
| Operating Temperature | -40°C~+125°C |
| Inductance Range | 0.24μH~33μH |
| Test Frequency | @1MHz/1V |
| DC Resistance (DCR) | 0.028Ω~1.770Ω |
| Saturation Current (Isat) | 0.45A~4.60A |
| RMS Current (Irms) | 0.37A~3.00A |
| Self-Resonant Frequency (SRF) | 10MHz~360MHz |
Cross Reference & Replacement
Cross-reference alternatives:
- TDK — A same-spec part from a globally recognized passive-component maker — compatible footprint, matched process and key parameters, stable worldwide supply; a proven drop-in for this application class.
- Murata — A same-spec part from a leading passive-component maker — matched core features such as magnetic shielding and low DCR; widely used as an alternative in the supply chain.
- Sumida — A same-spec part from a globally recognized passive-component maker — compatible footprint, matched process and key parameters, stable worldwide supply; a proven drop-in for this application class.
Applications
smartphones, smart TVs and set-top boxes
notebooks, desktops, tablets and servers
VR/AR headsets, smart watches, portable game consoles
industrial equipment, instruments and DC-DC converter stages
FAQ
Q: What is a magnetic-glue coated construction?
A: The winding is encapsulated in magnetic adhesive instead of a ferrite clamp — a smaller, lower-profile, magnetically shielded body with low buzz noise under load.
Q: Is SPH252010H suitable for high-temperature environments?
A: Yes — the rating covers -40°C~+125°C including self-temperature rise, with inductance tested at 1 MHz / 0.1 MHz, 1 V.
