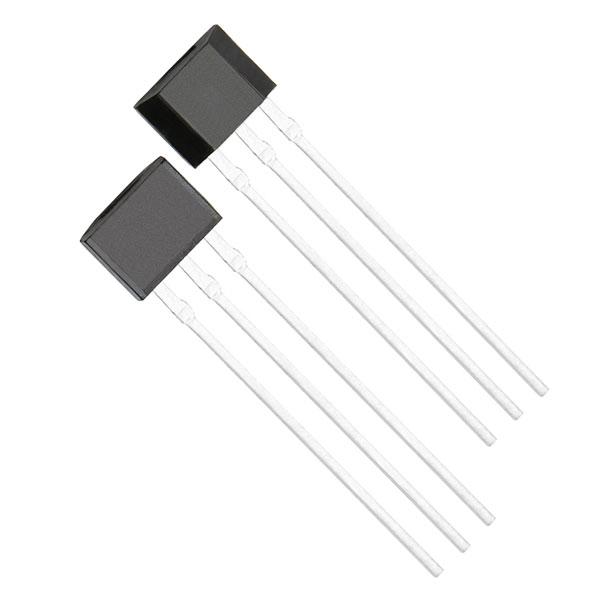

SS40AF
Low-cost enhanced bipolar Hall-effect digital sensor ICs.
- Brand： HONEYWELL
- Size/Package： TO-92
- Parameter： 45~170Gs
- Voltage： 4.5-24V
- Release Point： -170~45Gs
- Operating Temp： -40℃~+120℃
- Parameters
- Brand： HONEYWELL
- Size/Package： TO-92
- Parameter： 45~170Gs
- Voltage： 4.5-24V
- Release Point： -170~45Gs
- Operating Temp： -40℃~+120℃
These small and versatile digital Hall-effect devices are operated by the magnetic field from a permanent magnet or an electromagnet, and are designed to respond to alternating North and South poles. The built-in regulator provides enhanced stability of operation from over a 4.5 Vdc to 24 Vdc supply voltage range, and internal circuitry is designed to prevent sensor damage in case the supply voltage polarity is accidentally reversed.
The open-collector sinking output voltage is easily interfaced with a wide variety of electronic circuits. Both products are designed for high volume applications. The SS40F is factory tested at 25°C [77°F] and the SS40AF is factory tested at both 25°C [77°F] and 125°C [257°F].
These products are available in a flat TO-92-style package with straight leads in bulk packaging.
