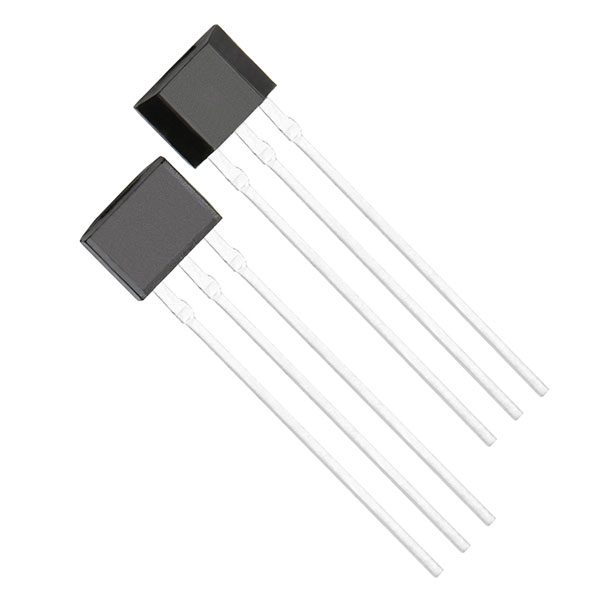

SS41F6
High Voltage, ESD Protection Bipolar Hall-Effect Digital Position Sensor ICs.
- Brand： HONEYWELL
- Size/Package： TO-92
- Parameter： 150Gs
- Voltage： 4.5-24V
- Release Point： -150Gs
- Operating Temp： -40℃~+150℃
- Parameters
- Brand： HONEYWELL
- Size/Package： TO-92
- Parameter： 150Gs
- Voltage： 4.5-24V
- Release Point： -150Gs
- Operating Temp： -40℃~+150℃
The SS41F6 sensor ICs are versatile digital Hall-effect devices operated by the magnetic field from a permanent magnet or an electromagnet, and are designed to respond to alternating North and South poles. The built-in regulator provides enhanced operation stability from 4.5 Vdc to 60 Vdc supply voltage range, and internal circuitry is designed to prevent sensor damage in case the supply voltage polarity is accidentally reversed.
Output short circuit protection is enabled when the output load current exceeds the rated load current. The open-collector, sinking output voltage can be easily interfaced with a wide variety of electronic circuits. These products are available in a flat TO-92-style package with straight leads in bulk packaging.
