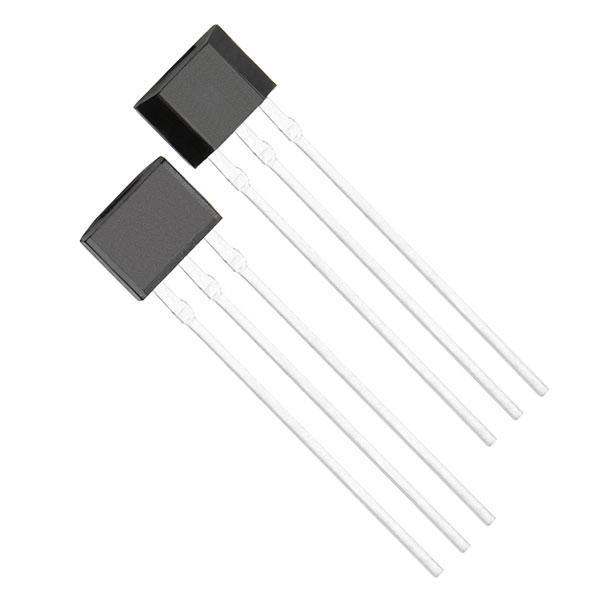

SS49E
Compact Size, Low-Noise Output
- Brand： HONEYWELL
- Size/Package： TO-92
- Parameter： -1000-1000Gs
- Voltage： 2.7-6.5V
- Release Point： -
- Operating Temp： -40℃~+100℃
- Parameters
- Brand： HONEYWELL
- Size/Package： TO-92
- Parameter： -1000-1000Gs
- Voltage： 2.7-6.5V
- Release Point： -
- Operating Temp： -40℃~+100℃
SS49E | Linear Hall-Effect Sensor for Position, Current and Speed Sensing
Product Introduction
The SS49E is a low-cost linear Hall-effect sensor for position, current and speed sensing. It addresses temperature stability, noise and mechanical wear.
YQM supplies authentic HONEYWELL SS49E parts with datasheets, samples and FAE support for production programs.
Application Pain Points & Solutions
- Pain: Mechanical limit switches and potentiometers wear out and fail
Solution: Non-contact magnetic sensing, no mechanical wear, long life. - Pain: Motor and power-supply noise causes false triggering
Solution: Low-noise output with thin-film resistors; no external filtering required. - Pain: Low-cost Hall sensors drift over temperature
Solution: -40~+100°C operation with thermally balanced IC and thin-film resistors. - Pain: Tight PCB space and cost pressure
Solution: TO-92 package, 6 mA typical, 2.7–6.5V supply, cost-effective.
Core Advantages
- Linear output: Output voltage follows magnetic field strength.
- -40~+100°C: Stable operation over the industrial temperature range.
- 6 mA typical: Low power for cost-sensitive and battery-backed designs.
- Non-contact sensing: No mechanical wear; long service life.
- TO-92 package: Cost-effective for high-volume designs.
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 2.7–6.5 V |
| Supply Current | 6 mA typ. at 5 V |
| Magnetic Range | -1000~1000 Gs |
| Output Type | Linear analog voltage |
| Operating Temperature | -40~+100°C |
| Package | TO-92 |
| Output Noise | Low noise; no external filtering required |
| Temperature Stability | Thin-film resistors; thermally balanced IC |
Original specification table (English).
Applications
Non-contact, stable sensing for this application.
Non-contact, stable sensing for this application.
Non-contact, stable sensing for this application.
Non-contact, stable sensing for this application.
Non-contact, stable sensing for this application.
FAQ
Q: What is the MOQ and lead time for SS49E?
A: MOQ depends on package and frequency. Stock items ship quickly; custom frequencies typically take 4–6 weeks. Contact YQM for a quote.
Q: Do you provide samples and datasheets?
A: Yes. Samples and datasheets are available for evaluation.
Q: Can YQM support custom frequencies or packages?
A: Yes, subject to the product series. Send your target frequency, package, stability and temperature range.
Q: Are the parts authentic?
A: YQM supplies authentic HONEYWELL parts with traceable lot information.
Related Products
Contact YQM for samples, datasheets, pricing and FAE support.
