Y05A10H

FFC/FPC Connectors | 0.5mm Flip-Lock Upper/Lower Contact SMT FPC/FFC Connector

Core Advantages

• Thin & Compact: 0.5mm standard pitch + 1.0mm ultra-thin stacking height, maximizing installation space savings.
• Reliable Contact: Upper and lower dual-contact + flip-lock actuator, providing strong retention, anti-loosening, and more stable conduction.
• Flame-Retardant Safety: Both housing and shell achieve UL 94V-0 flame-retardant rating for enhanced equipment safety.
• Excellent Electrical Performance: Gold-plated terminals with low contact resistance, stable signal transmission, and anti-aging properties.
• Flexible Selection: 4–50 Pin full coverage, supporting both top-contact and bottom-contact configurations.
• Production Friendly: Standard SMT design compatible with automated assembly lines, enabling efficient and stable placement.

Product Introduction

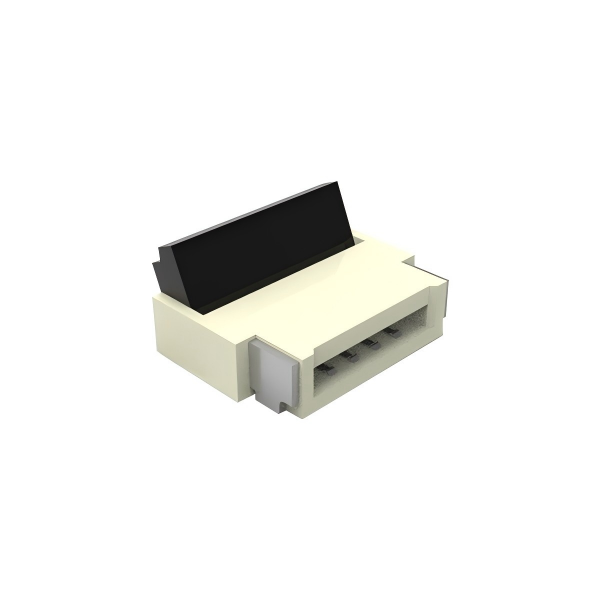

Y05A10H Series is YQM's 0.5mm pitch, 1.0mm stacking height flip-type upper/lower contact SMT FPC/FFC connector. Featuring UL 94V-0 flame-retardant LCP housing with phosphor bronze gold-plated terminals, it covers a comprehensive 4–50 Pin specification range. Purpose-designed for stable FPC/FFC flexible flat cable interconnection, it meets the board-level flex cable connection requirements of slim smart devices.

Key Specifications

• Product Type: 0.5mm Flip-Type Upper/Lower Contact SMT FPC/FFC Connector
• Pitch: 0.5mm
• Stacking Height: 1.0mm
• Rated Voltage: 50V AC/DC
• Rated Current: 0.5A per pin
• Contact Resistance: ≤30mΩ (Initial Max)
• Insulation Resistance: ≥500MΩ (Min)
• Withstanding Voltage: 250V AC/minute
• Mating Durability: ≥20 cycles
• Operating Temperature: -40°C to +85°C
• Operating Humidity: 20% to 85%
• Housing Material: LCP (UL 94V-0, Natural Color)
• Shell Material: LCP (UL 94V-0, Black)
• Terminal Material: Phosphor Bronze, Gold-Plated
• Structural Features: Flip-Lock Actuator, Upper/Lower Contact, SMT Horizontal Mount
• Pin Count Options: 4 / 6 / 7 / 8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30 / 32 / 34 / 40 / 45 / 50 Pin

Mating Connectors & Accessories

• Mating Target: Standard 0.5mm pitch FPC/FFC flexible flat cable
• Connection Method: Flip-lock mechanism, upper and lower dual-contact conduction

Alternative Products and Reasons

• HIROSE (Japan) - Series: FH Series (0.5mm pitch flip-type FPC/FFC connectors)
• JAE (Japan) - Series: PS Series (0.5mm pitch flip-type FPC/FFC connectors)
• I-PEX (Japan) — 0.5mm pitch flip-type FPC/FFC connector series

Pin-to-pin compatible, directly replaces HIROSE FH Series, JAE PS Series, I-PEX and other 0.5mm pitch, 1.0mm stacking height flip-type FPC/FFC connectors.

Pitch, stacking height, structure, and electrical performance fully equivalent to imported models.

1:1 PCB pad and package compatibility — no PCB redesign needed, rapid replacement.

20%–40% procurement cost reduction with significant BOM optimization.

Domestic mass production with ample stock, stable lead times, and zero supply disruption risk.

Flame-retardant + gold-plated + flip-lock reliability meets standards; local FAE provides end-to-end support.
