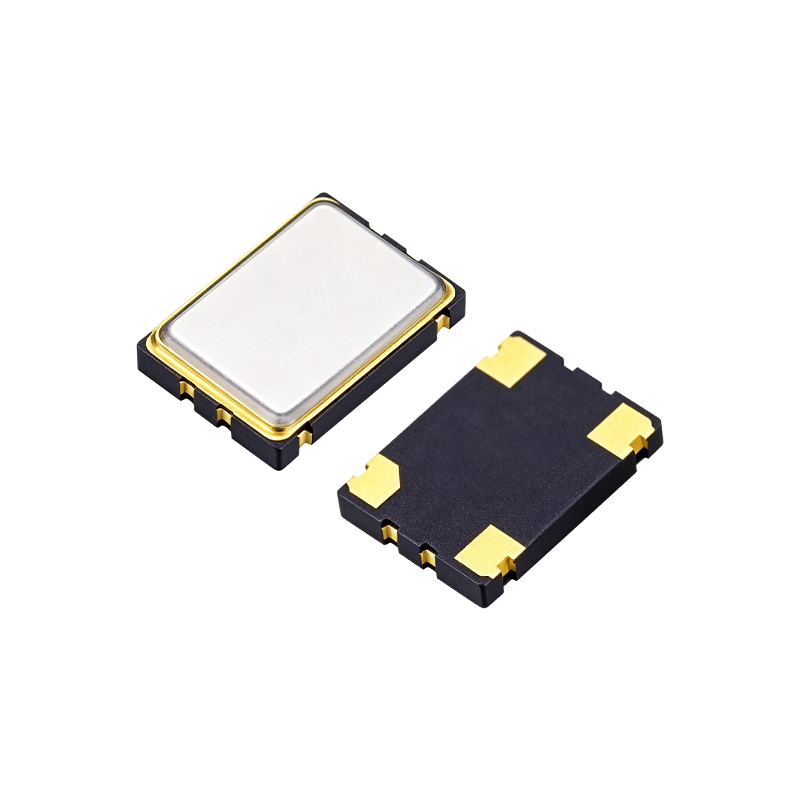

YM-752ER
Compact 7050 size, high precision, and wide temp range (-40~85°C).
- Brand： YXC
- Size/Package： 7.0 x 5.0mm/4P 7050
- Parameter： 8-64MHZ
- Load Cap： 12,16,20PF,or specify
- Freq Tolerance： ±10,±20PPM,or specify
- Operating Temp： -40℃-+85℃
- Applications： IoT, Smart Wearable，Communication，Industrial Control，Consumer Electronics
- Parameters
- Brand： YXC
- Size/Package： 7.0 x 5.0mm/4P 7050
- Parameter： 8-64MHZ
- Load Cap： 12,16,20PF,or specify
- Freq Tolerance： ±10,±20PPM,or specify
- Operating Temp： -40℃-+85℃
- Applications： IoT, Smart Wearable，Communication，Industrial Control，Consumer Electronics
SMD Crystals | YM-752ER 7050 Metal-Sealed
Product Introduction
The YM-752ER is a 7050 metal hermetically sealed 4-pad SMD quartz crystal using fundamental-mode oscillation design. It features high frequency accuracy, wide temperature stability, low aging, and good environmental reliability. Minimum frequency tolerance of ±10 ppm, operating temperature range covering −40 to +85°C. Suitable for communication, industrial control, and electronic equipment with high requirements for clock stability and long-term reliability.
Core Advantages
- 7050 Metal-Sealed Crystal: High precision, wide temperature stability, low aging, and strong reliability — suitable for long-term stable operation in industrial and communication equipment.
Alternative Products and Reasons
- Abracon / Fox (USA) — FC7BS series
Replacement Reason: Same 7050, 4-pad, pins 1/3 crystal, 2/4 ground, package height max 1.2 mm, frequency tolerance ±10 ppm, ±30 ppm, operating temperature −40 to +85°C — electrical parameters nearly identical.
Key Features
Applications
Network terminals
Test equipment
Access control systems
Smart meters, data acquisition terminals
