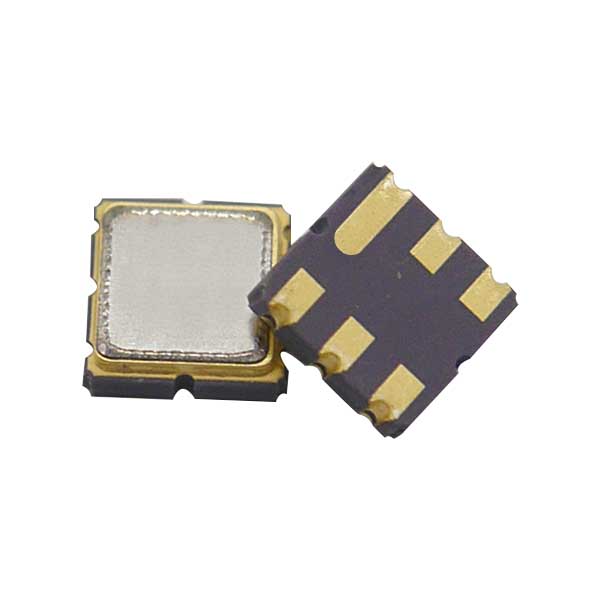

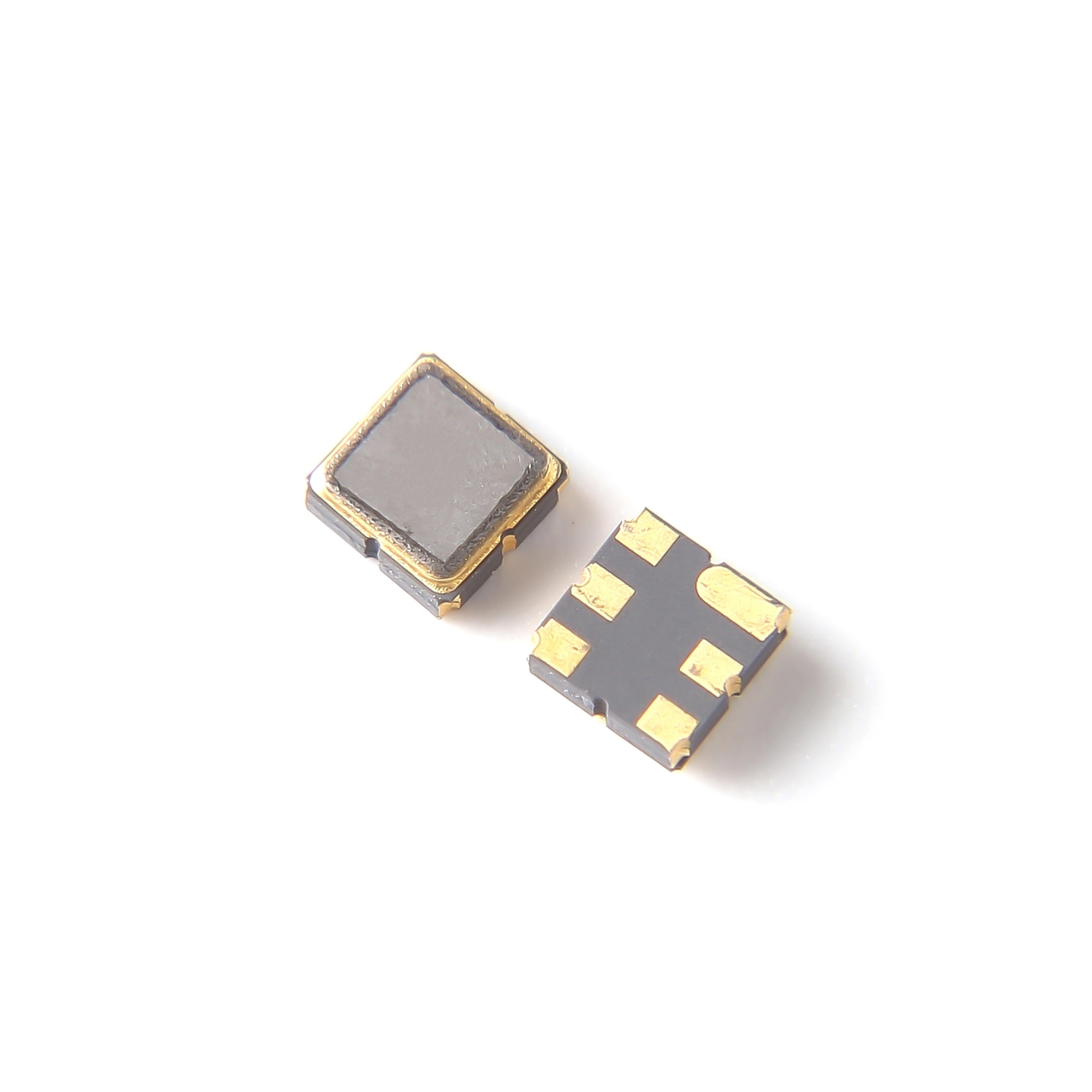

YQM3030F

SAW Filters | SMD 3030 Compact Ceramic SMD SAW Bandpass Filter

Core Advantages

• Compact Integration: 3.0mm square-shell compact package saves PCB area, ideal for ultra-thin device designs.
• Excellent RF Performance: Low insertion loss preserves RF transmit power; high out-of-band rejection blocks WiFi and spurious interference, boosting overall receiver sensitivity and dramatically reducing GPS drop-out rates in positioning devices.
• Multi-Grade Selection: Three product tiers — Consumer, Industrial, Automotive — covering everything from commercial to in-vehicle harsh-condition applications in one stop.

Product Introduction

The SMD3030 SAW filter is a 3.0x3.0mm six-pin SMD ceramic-packaged surface acoustic wave bandpass filter. Frequency coverage spans 300MHz to 2605MHz, with mainstream fixed frequencies at 315 / 433.92 / 868 / 915 / 1575.42 / 2450MHz. Featuring standard 50ohm impedance and full SMT reflow solder compatibility, it is the go-to miniaturized filtering device for RF front-end designs.

Alternative Products and Reasons

• Murata (Japan) — SAFF Series, SM3030-6P full SMD 3030 6-Pin lineup.
• Qualcomm (USA) — RFSB / B39431 Series, SMD3030 6-Pin.
• Abracon LLC (USA) — AFII Series.
• TST / TAISAW (Taiwan) — TA Series: TA1787A, TA0440A (1575MHz BeiDou / GPS).

PIN-TO-PIN Fully Compatible: 3.0x3.0mm dimensions, 6-pin pad layout, PCB footprint fully identical to imported products. Customers can directly drop in as a PIN-TO-PIN replacement without any PCB redesign.

Key Features

• Package Dimensions: 3.0x3.0x1.25~1.4mm, 6-Pin SMD, tape-and-reel shipping, suitable for high-density PCB layout.
• Electrical Performance: Typical insertion loss 2.0~3.5dB, passband ripple ≤1.5dB, out-of-band rejection 35~55dB; bandwidth options 6 / 10 / 15 / 50MHz with custom support.
• Frequency Range: 300MHz~2605MHz, covering ISM, GNSS, and mainstream 4G/5G full bands.
• Temperature Stability: Consumer grade -20°C~+70°C; Industrial / Automotive grade -40°C~+125°C, temperature drift ≤5ppm/°C.
• Environmental Compliance: RoHS, REACH certified; automotive-grade models meet AEC-Q200; standard 50Ω I/O requires no external matching circuit.

Applications

• Consumer Electronics: Smart door locks, wireless remote controls, garage door access, remote controllers (315/433MHz ISM bands); smart wearables, TWS Bluetooth, portable positioning watches (GPS/BeiDou 1575MHz).
• IoT (Internet of Things): NB-IoT modules, LoRa wireless modules, industrial wireless sensors, smart metering, indoor IoT gateways (868/915MHz EU/US ISM).
• Satellite Navigation (GNSS): GPS / BeiDou / GLONASS navigation modules, in-vehicle navigation, RTK surveying & positioning, drone GPS receivers (1575.42MHz L1 band).
• Communication Equipment: 4G/5G small cells, wireless APs, two-way radios, downhole/tunnel industrial private-network communications (700MHz~2.5GHz mobile bands).
• Automotive Electronics: Automotive remote keys, in-vehicle GPS modules, TPMS tire pressure monitoring, automotive-grade smart cockpit RF units.

Certifications

RoHS, REACH certified; automotive-grade models meet AEC-Q200.
