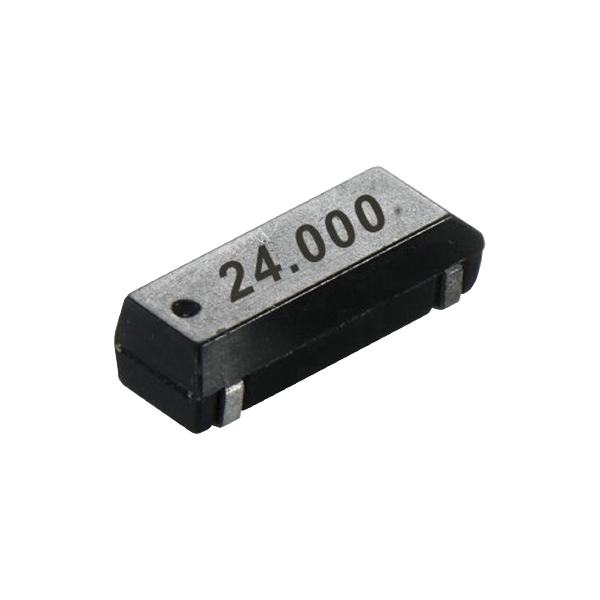

YQM308
- Brand： YXC
- Size/Package： 12.5 x 4.6 x 3.8 mm
- Parameter： 3.072~33.9MHz
- Load Cap： 8, 10, 12pF
- Freq Tolerance： ±50, 100PPM
- Operating Temp： -30~+85°C
- Package： 4P SMD
- Parameters
- Brand： YXC
- Size/Package： 12.5 x 4.6 x 3.8 mm
- Parameter： 3.072~33.9MHz
- Load Cap： 8, 10, 12pF
- Freq Tolerance： ±50, 100PPM
- Operating Temp： -30~+85°C
- Package： 4P SMD

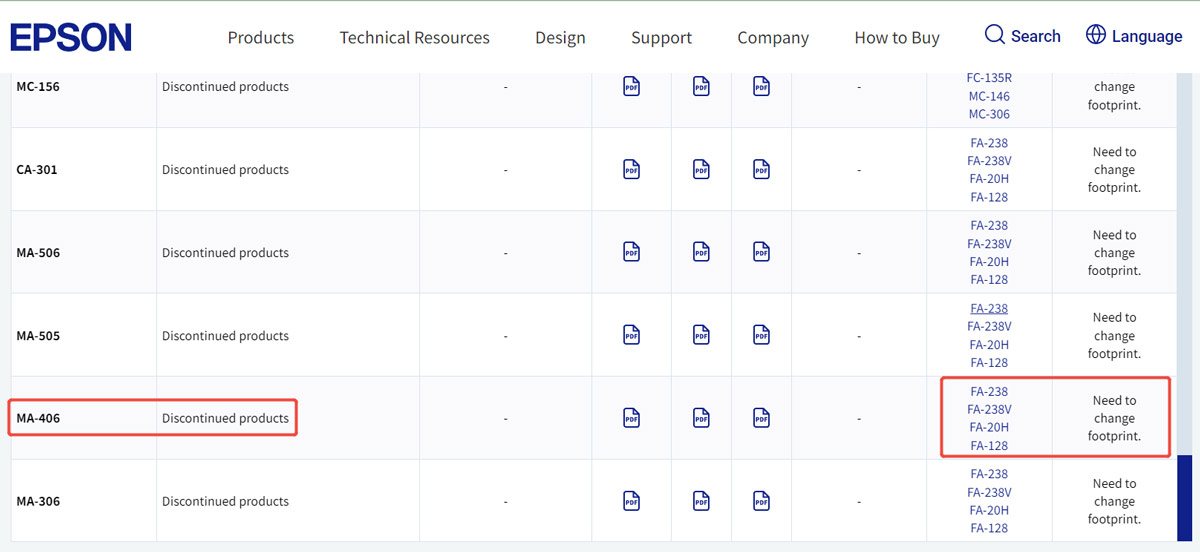

The YQM308 series is a large-sized passive MHz surface-mount crystal, specifically developed to address urgent supply shortages caused by the discontinuation of certain imported product lines. For instance, EPSON's MA-406 model ceased production and supply years ago, driven by the overarching trend in the crystal industry: miniaturization. As a result, bulkier crystal oscillators are gradually being phased out. This shift is evident in EPSON’s current recommendations for compact alternatives like the FA-238, FA-238V, FA-20H, and FA-128 series. However, it is critical to emphasize that adopting these smaller form factors necessitates a complete PCB redesign.
For customers unable to redesign their circuit boards yet requiring a direct pin-to-pin replacement, the YQM308 serves as the ideal solution. Standard production lead time is 6–8 weeks.
