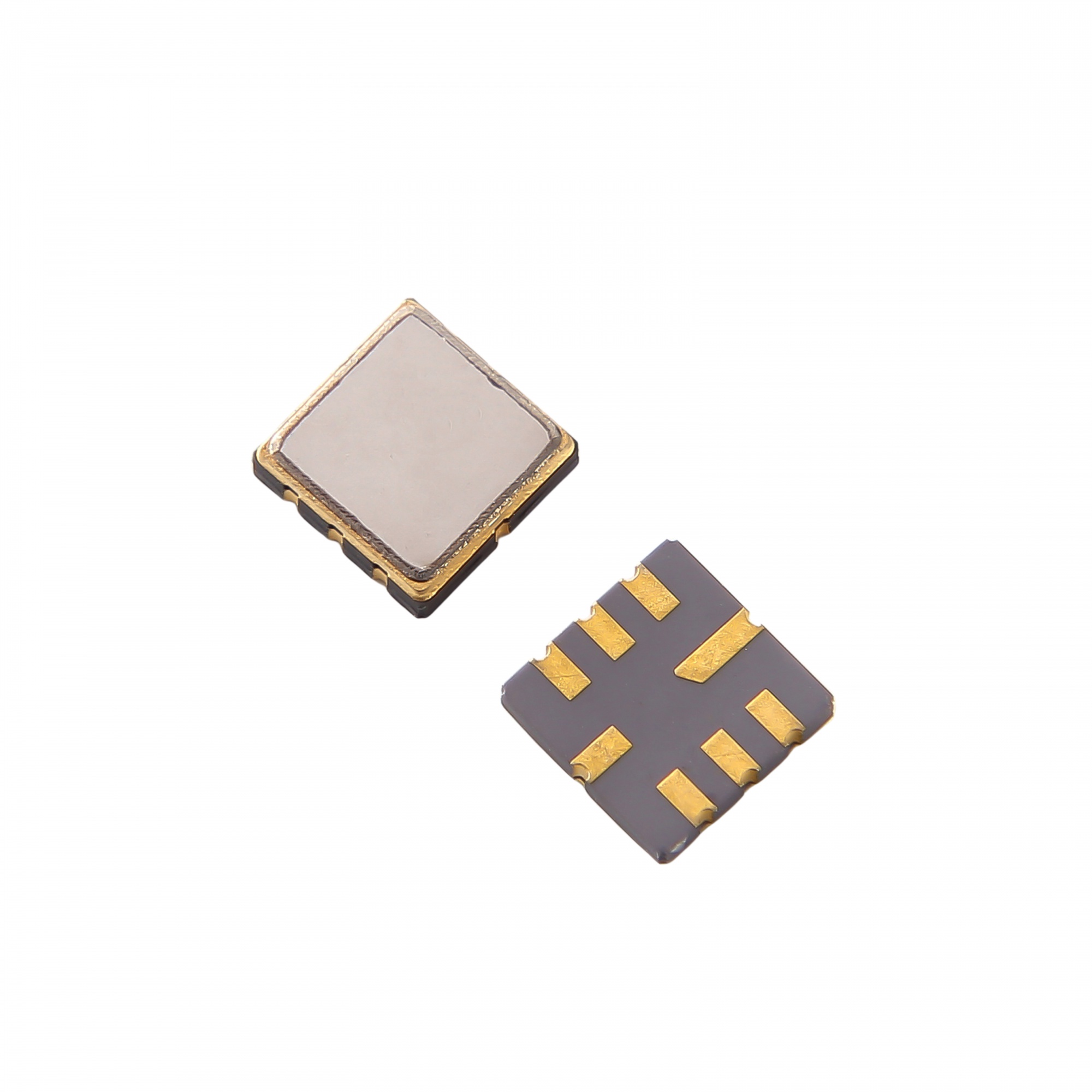

YQM5050F

SAW Filters | SMD 5050 Ceramic SMD SAW Bandpass Filter

Core Advantages

• High Power Handling: Larger cavity than 3030/3838 packages provides ample RF power headroom; high-power TX loops won't saturate or distort — ideal for long-range wireless equipment.
• Ultra-High Out-of-Band Rejection: Excellent stopband attenuation effectively shields 2.4GHz WiFi and adjacent-channel spurious interference, significantly boosting receiver sensitivity and adjacent-channel selectivity.
• Differential / Single-Ended Dual Configurations: 8-Pin pad compatible with both single-ended and differential circuit topologies — one device fits multiple circuit designs.
• Full-Condition Coverage: Automotive-grade variants meet extreme cold/heat in-vehicle and outdoor field environments; one-stop coverage across commercial, industrial, and automotive scenarios.

Product Introduction

The SMD5050 is a 5.0×5.0mm leadless ceramic SMD SAW filter featuring a mainstream 8-Pin pad layout. Frequency coverage spans 76.5MHz to 1000MHz, with primary frequencies at 315 / 433 / 868 / 915MHz ISM, 1575MHz GNSS, and receiver IF from 70~300MHz. Standard 50Ω impedance with full high-speed SMT compatibility. The larger cavity over 3030/3838 delivers superior power headroom and out-of-band rejection performance.

Alternative Products and Reasons

• Abracon (USA) — AFS315E-T, 8-SMD 5050 package.
• Akoustis (USA) — RF1404C, RF1172C, 8-SMD 5050 package.
• TDK (Japan) — IF-RF SAW MEM2012 Series, 8-SMD 5050 package.
• Murata (Japan) — FSF-5050 Series.
• FCom / Fuji (Japan) — FSF-5050 Series, full lineup 76.5M~1000M.

PIN-TO-PIN Fully Compatible: Form factor, pad layout fully identical to imported parts. Customers can directly SMD substitute without any PCB redesign.

Key Features

• Package Dimensions: 5.0×5.0×1.7mm, standard 8-pad SMD, tape-and-reel mass production, standardized PCB pad design.
• Electrical Performance: Insertion loss 2.3~3.6dB, passband ripple ≤1.8dB, out-of-band rejection 45~65dB with excellent shape factor; bandwidth 2MHz~20MHz customizable, covering narrowband IF to wideband ISM.
• Frequency Range: 76.5MHz~1000MHz, covering VHF/UHF, Sub-GHz ISM, full receiver IF bands.
• Temperature Stability: Consumer grade -20°C~+70°C; Industrial / Automotive grade -40°C~+125°C, temperature drift ≤5ppm/°C; automotive models AEC-Q200 certified.
• Power Advantage: Ample cavity space with higher input power tolerance than 3838; strong ESD and surge immunity, stable performance in harsh electromagnetic environments.
• Environmental Compliance: RoHS, REACH compliant; automotive-grade models AEC-Q200 certified; standard 50Ω I/O with selectable single-ended / differential architectures for diverse RF circuit matching.

Applications

• Professional Wireless Communications: Two-way radios, data radios, VHF/UHF private network equipment, superheterodyne receiver IF filtering, SDR software-defined radio front-ends, downhole industrial communication modules (70~300MHz IF).
• Industrial IoT & Long-Range Telemetry: High-power LoRa gateways, smart utility remote metering (water/gas/electricity), outdoor industrial wireless sensors, field data acquisition terminals (868/915MHz EU/US ISM).
• Automotive Electronics: Automotive RKE remote, TPMS tire pressure TX/RX modules, in-vehicle infotainment RF, construction machinery remote control receivers (315/433MHz).
• Security & High-Power Remote Control: Industrial roller shutter door controllers, high-power garage remotes, burglar alarm host RF receiver front-ends.
• Satellite Navigation: GPS / BeiDou L1 navigation modules, RTK surveying receivers, high-precision positioning equipment (1575.42MHz).

Certifications

RoHS, REACH compliant; automotive-grade models AEC-Q200 certified.
